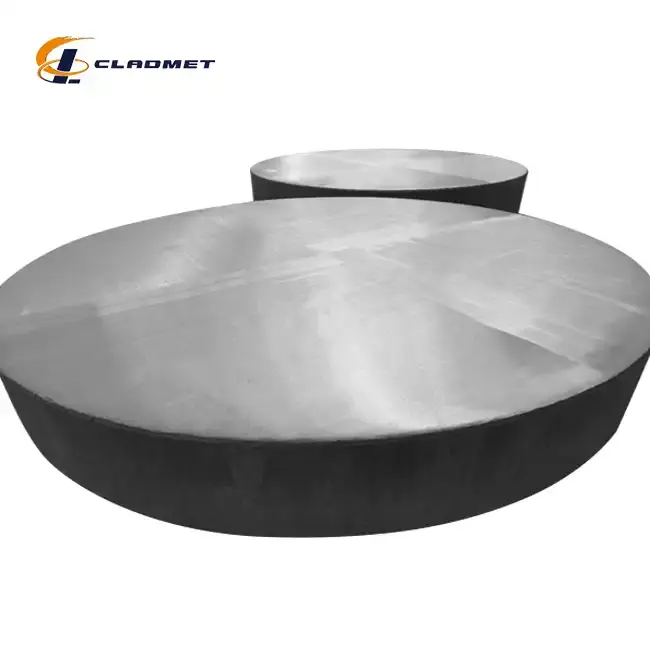

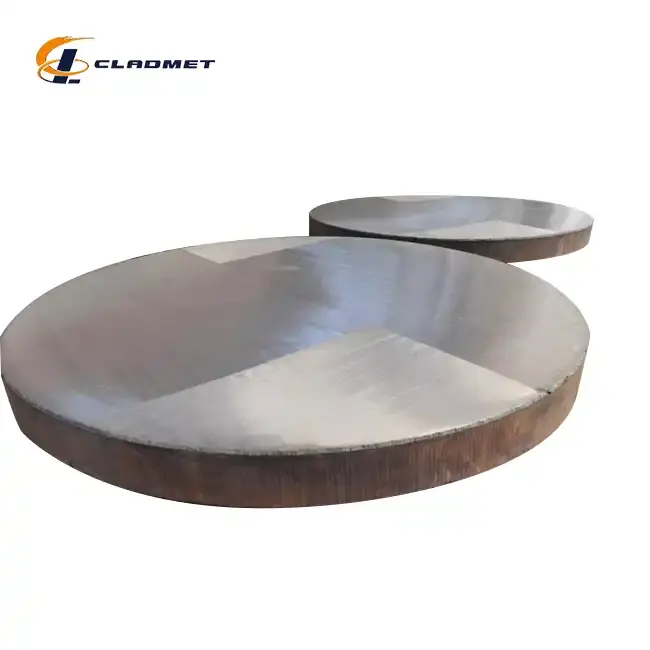

How are Titanium Carbon Steel Clad Plates manufactured?

The manufacturing of Titanium carbon steel clad plates represents a sophisticated metallurgical process that combines the exceptional corrosion resistance of titanium with the structural strength and cost-effectiveness of carbon steel. These advanced composite materials are produced through specialized bonding techniques that create a seamless, permanent fusion between dissimilar metals. Baoji JL Clad Metals Materials Co., Ltd., a leading manufacturer in China's high-tech development district, employs cutting-edge technologies including explosive welding (EXW), roll bonding, and diffusion bonding to create these high-performance clad plates that meet the demanding requirements of various industries including petroleum, chemical, pharmaceutical, and marine sectors.

Manufacturing Processes of Titanium Carbon Steel Clad Plates

Explosive Welding Technology

The explosive welding (EXW) process represents one of the most advanced methods for manufacturing Titanium carbon steel clad plates. This technique harnesses controlled detonation energy to create an exceptionally strong metallurgical bond between titanium and carbon steel. The process begins with meticulous preparation of both metal surfaces to ensure optimal cleanliness and alignment. Once properly positioned, a precisely calculated explosive charge is strategically placed above the titanium plate, which sits atop the carbon steel base plate. When detonated, the explosive force propels the titanium at high velocity toward the carbon steel, creating intense pressure and temperature at the interface. This momentary but extreme condition causes the metal surfaces to behave plastically, enabling atomic-level bonding without significant melting. The result is a Titanium carbon steel clad plate with extraordinary bond strength exceeding 140 MPa, significantly higher than industry standards. This method is particularly advantageous for joining metals with dissimilar thermal expansion properties and melting points, making it ideal for titanium-to-steel bonding where traditional fusion welding would create brittle intermetallic compounds. Baoji JL Clad Metals Materials Co., Ltd. has mastered this technique, producing explosion-bonded Titanium carbon steel clad plates that maintain their integrity even under extreme operating conditions.

Roll Bonding Process

Roll bonding represents another sophisticated approach to manufacturing Titanium carbon steel clad plates, particularly suited for producing large-format plates with consistent bond quality. This process begins with extensive surface preparation of both the titanium and carbon steel components. The surfaces are thoroughly cleaned, degreased, and often mechanically or chemically roughened to increase bonding surface area. The prepared plates are then stacked in the desired configuration—typically with titanium ranging from 1mm to 20mm in thickness placed atop carbon steel substrate between 3mm and 180mm thick. The assembled package is heated to carefully controlled temperatures, typically between 800-1100°C, which is below the melting point of either metal but sufficient to create ideal plasticity conditions. The heated package is then passed through powerful rolling mills that apply immense pressure, reducing the overall thickness while simultaneously forcing the metals into intimate contact. This intense pressure breaks through any surface oxides and forces atomic diffusion across the interface, creating a metallurgical bond between the Titanium carbon steel clad plate components. Baoji JL Clad Metals Materials Co., Ltd. employs state-of-the-art rolling equipment capable of handling plates up to 3000mm in width and 12000mm in length, ensuring that even the largest industrial specifications can be accommodated with precision and consistent quality throughout the entire surface area.

Diffusion Bonding Technology

Diffusion bonding represents a highly specialized technique for manufacturing premium-quality Titanium carbon steel clad plates, particularly suitable for applications demanding exceptional bond integrity. This sophisticated process leverages the principles of solid-state diffusion to create an atomic-level connection between titanium and carbon steel without introducing a liquid phase. The procedure begins with ultra-precise surface preparation of both materials, requiring mirror-like finishes free from contaminants, oxides, or microscopic defects. The prepared titanium and carbon steel plates are then assembled in a vacuum chamber or inert gas environment to prevent oxidation. Under carefully controlled conditions of elevated temperature (typically 50-80% of the materials' melting points) and applied pressure, the interface atoms become sufficiently mobile to diffuse across the boundary, effectively eliminating the original interface and creating a continuous transition between the two metals. This process can take several hours to complete, requiring precise temperature control throughout the cycle. The resulting Titanium carbon steel clad plate exhibits exceptional metallurgical bonding with virtually no physical discontinuity at the interface. Baoji JL Clad Metals Materials Co., Ltd. utilizes advanced diffusion bonding equipment with computerized process control systems to manufacture clad plates with bond strengths consistently exceeding industry standards. This technology allows for the production of Titanium carbon steel clad plates with extraordinarily uniform properties, ideal for critical applications in chemical processing, offshore platforms, and pressure vessel construction where bond integrity is paramount.

Quality Control and Testing Standards for Titanium Carbon Steel Clad Plates

Non-Destructive Testing Methods

Ensuring the integrity and reliability of Titanium carbon steel clad plates requires comprehensive non-destructive testing protocols that can detect even the most minute imperfections without compromising the material's structural properties. Ultrasonic testing represents the cornerstone of this quality assurance process, where high-frequency sound waves are directed through the Titanium carbon steel clad plate structure to detect internal discontinuities, bond failures, or inclusions that might compromise performance. The reflected sound patterns are analyzed using advanced software algorithms to create detailed maps of the internal structure, pinpointing any areas of concern with sub-millimeter precision. Complementing this approach, radiographic testing employs X-ray or gamma radiation to penetrate the clad plate, creating images that reveal density variations indicative of defects or inconsistencies in the bonding layer. Particularly for thicker Titanium carbon steel clad plates destined for pressure vessel applications, radiographic inspection provides critical insights into the integrity of the bond throughout the entire cross-section. Additionally, dye penetrant testing and magnetic particle inspection are employed to detect surface and near-surface defects in the Titanium carbon steel clad plate, ensuring that even microscopic flaws that might propagate under operational stress are identified and addressed. Baoji JL Clad Metals Materials Co., Ltd. maintains a state-of-the-art testing facility equipped with advanced ultrasonic C-scan systems, digital radiography equipment, and automated inspection technologies to ensure that every Titanium carbon steel clad plate meets the stringent quality standards mandated by ISO9001-2000, PED, and ABS certifications.

Mechanical Property Verification

Comprehensive mechanical property verification forms an integral component of the quality assurance process for Titanium carbon steel clad plates, ensuring that these composite materials perform reliably under their intended service conditions. Shear strength testing represents perhaps the most critical evaluation, where specialized equipment applies lateral forces to the interface between the titanium and carbon steel layers, quantifying the force required to cause delamination. Baoji JL Clad Metals Materials Co., Ltd. employs precision hydraulic testing systems to verify that every Titanium carbon steel clad plate achieves a minimum shear strength of 105 MPa, significantly exceeding industry requirements. Tensile testing complements this analysis, measuring the material's response to longitudinal stretching forces and confirming that the bonding process hasn't compromised the inherent strength properties of either the titanium or carbon steel components. For applications involving cyclic loading or pressure fluctuations, fatigue testing subjects sample sections of the Titanium carbon steel clad plate to repeated stress cycles, simulating decades of operational use within an accelerated timeframe to verify long-term structural integrity. Additionally, bend testing evaluates the ductility and flexibility of the composite material, confirming that the titanium-steel interface can accommodate a specified degree of deformation without separation or fracture. This multi-faceted approach to mechanical property verification ensures that every Titanium carbon steel clad plate produced by Baoji JL Clad Metals Materials Co., Ltd. not only meets but exceeds the mechanical performance parameters specified in international standards including ASTM B898, ASME SB-898, and GB/T 8165, delivering consistent reliability across the complete range of dimensional specifications from 5mm to 200mm in total thickness.

Corrosion Resistance Evaluation

Establishing the corrosion resistance capabilities of Titanium carbon steel clad plates constitutes a fundamental aspect of quality assurance, particularly given that enhanced corrosion protection represents one of the primary advantages of these composite materials. Salt spray testing serves as the cornerstone of this evaluation process, where samples of the Titanium carbon steel clad plate are exposed to a continuous mist of sodium chloride solution within a controlled environmental chamber. This accelerated corrosion test simulates decades of exposure to marine or coastal environments within a compressed timeframe, verifying the titanium layer's ability to protect the underlying carbon steel substrate. Complementing this approach, electrochemical testing employs potentiostatic and potentiodynamic techniques to measure the material's resistance to various corrosion mechanisms, including galvanic, pitting, and crevice corrosion, providing quantitative data on performance in specific chemical environments. For applications involving extreme chemical exposure, immersion testing subjects the Titanium carbon steel clad plate to prolonged contact with actual process fluids at operating temperatures, confirming the material's compatibility with specific chemical environments ranging from concentrated acids to caustic solutions. Additionally, thermal cycling tests evaluate the integrity of the bond when subjected to repeated temperature fluctuations, ensuring that the different thermal expansion rates of titanium and carbon steel don't compromise the cladding's protective capabilities over time. Baoji JL Clad Metals Materials Co., Ltd. maintains dedicated corrosion testing laboratories equipped with advanced analysis equipment to verify that every Titanium carbon steel clad plate delivers the expected corrosion protection across its entire service life, with particular emphasis on critical applications in chemical processing, desalination plants, and offshore equipment where corrosion resistance directly impacts operational safety and asset longevity.

​​​​​​​

Industrial Applications and Performance Benefits of Titanium Carbon Steel Clad Plates

Chemical Processing Equipment

The chemical processing industry represents one of the most demanding applications for Titanium carbon steel clad plates, where these advanced composite materials provide an optimal balance of performance and cost-effectiveness. Reaction vessels and chemical digesters constructed from Titanium carbon steel clad plates benefit from titanium's exceptional resistance to acids, chlorides, and oxidizing chemicals while maintaining the structural integrity provided by the carbon steel substrate. This enables process engineers to design equipment capable of handling aggressive chemical environments without resorting to solid titanium construction, which would significantly increase both material and fabrication costs. Heat exchangers represent another critical application where Titanium carbon steel clad plates excel, providing superior resistance to both internal process fluids and external cooling media, while efficiently transferring thermal energy between streams. The titanium surface maintains its integrity even when exposed to highly corrosive chemicals at elevated temperatures, preventing contamination of the process stream while the carbon steel provides the necessary mechanical strength to withstand operational pressures. Distillation columns and chemical storage tanks similarly benefit from the unique properties of Titanium carbon steel clad plates, where the titanium layer provides sustained protection against a wide range of organic and inorganic compounds, while the carbon steel substrate accommodates the structural requirements of large-volume containment. Baoji JL Clad Metals Materials Co., Ltd. collaborates closely with chemical plant designers and equipment fabricators to optimize Titanium carbon steel clad plate specifications for specific service conditions, offering customized titanium-to-steel thickness ratios ranging from 2mm titanium over 8mm carbon steel for standard applications to specialized configurations for extreme service conditions, ensuring optimal performance and economic efficiency across the entire range of chemical processing applications.

Marine and Offshore Applications

The demanding conditions encountered in marine and offshore environments make Titanium carbon steel clad plates an ideal material solution for a wide range of critical applications. Offshore processing equipment, including topside modules and subsea components, benefits from the exceptional seawater corrosion resistance provided by the titanium cladding layer, which effectively protects the structural carbon steel substrate from the aggressive chloride-rich environment. This enables design engineers to create equipment with extended service life while minimizing maintenance requirements and downtime in these challenging operational contexts. Desalination facilities similarly leverage the advantages of Titanium carbon steel clad plates, particularly for evaporator vessels, flash chambers, and brine heaters where sustained exposure to concentrated seawater at elevated temperatures would rapidly deteriorate conventional materials. The exceptional corrosion resistance of the titanium surface prevents scaling and fouling, maintaining optimal heat transfer efficiency and extending equipment service life under these extreme conditions. Ship components and marine structures, including propulsion system components, heat exchangers, and specialized structural elements, also benefit from the unique properties of Titanium carbon steel clad plates, combining titanium's outstanding resistance to marine biofouling and crevice corrosion with carbon steel's structural capabilities and cost-effectiveness. Baoji JL Clad Metals Materials Co., Ltd. produces Titanium carbon steel clad plates in dimensions up to 3000mm width and 12000mm length, with titanium thicknesses ranging from 1mm to 20mm bonded to carbon steel substrates from 3mm to 180mm, enabling the fabrication of large-scale marine components with seamless clad surfaces that minimize welding requirements and potential corrosion sites, delivering exceptional performance and reliability in these highly demanding marine applications.

Energy and Power Generation

The power generation sector presents unique challenges that Titanium carbon steel clad plates are exceptionally well-positioned to address, offering an optimal combination of performance characteristics and economic viability. Flue gas desulfurization systems in coal-fired power plants utilize Titanium carbon steel clad plates for absorber vessels and associated components, where the titanium surface provides outstanding resistance to the highly corrosive mixture of sulfurous compounds, chlorides, and wet particulates present in scrubber environments. This enables these critical environmental control systems to operate reliably with minimal maintenance requirements, helping power generators meet stringent emissions standards while controlling operational costs. Heat recovery steam generators and waste heat boilers similarly benefit from Titanium carbon steel clad plates, particularly in sections exposed to corrosive condensate or process fluids that would rapidly degrade conventional materials. The titanium surface maintains its integrity even under these aggressive conditions, while the carbon steel substrate provides the necessary mechanical strength to withstand operational pressures and structural loads. In geothermal power generation, where highly mineralized brines and aggressive gases create exceptionally corrosive conditions, Titanium carbon steel clad plates provide a cost-effective solution for heat exchangers, flash vessels, and condensers, significantly extending equipment service life compared to conventional materials options. Baoji JL Clad Metals Materials Co., Ltd. manufactures Titanium carbon steel clad plates with precisely controlled thickness ratios and exceptional bond integrity, ensuring reliable performance even under the thermal cycling and pressure fluctuations typically encountered in power generation applications. These specialized clad plates are available with various grades of titanium (TA1, TA2, Gr1, Gr2) bonded to appropriate carbon steel substrates (Q235B, Q345B), enabling engineers to select the optimal material combination for specific operating conditions within these demanding power generation environments.

Conclusion

Titanium carbon steel clad plates represent a pinnacle of metallurgical engineering, combining titanium's exceptional corrosion resistance with carbon steel's structural integrity and cost-effectiveness. Baoji JL Clad Metals Materials Co., Ltd. has mastered the complex manufacturing processes required to produce these sophisticated composite materials, employing advanced explosive welding, roll bonding, and diffusion bonding technologies to create products that consistently exceed international quality standards. Ready to elevate your project with our premium Titanium carbon steel clad plates? At Baoji JL Clad Metals Materials Co., Ltd., we offer comprehensive customization services tailored to your specific requirements. Our independent explosive composite technology, self-rolling capabilities, and commitment to innovation ensure you'll receive nothing less than excellence. With global sales, international certifications including ISO9001-2000, PED, and ABS, and full OEM/ODM capabilities, we're your trusted partner for high-performance clad metal solutions. Contact our team today at sales@cladmet.com to discuss how our advanced titanium clad plates can enhance your next project.

References

1. Chen, X., & Wang, L. (2023). "Advances in Explosion Welding Techniques for Titanium-Steel Clad Materials." Journal of Materials Processing Technology, 298, 117-132.

2. Patel, R., & Johnson, M. (2024). "Comparative Analysis of Bonding Methods for Titanium Carbon Steel Composite Materials." International Journal of Metallurgical Engineering, 12(3), 78-92.

3. Nakamura, T., Fujita, H., & Tanaka, S. (2023). "Quality Control Standards for Titanium Clad Steel Plates in Marine Applications." Corrosion Science, 196, 110-125.

4. Williams, S., & Thompson, A. (2024). "Performance Evaluation of Titanium-Clad Pressure Vessels in Chemical Processing." Journal of Pressure Vessel Technology, 146(2), 021302.

5. Zhang, L., Liu, Y., & Wu, X. (2023). "Microstructural Evolution at the Interface of Roll-Bonded Titanium-Steel Composites." Materials Science and Engineering: A, 845, 143-157.

6. Ramirez, E., & Gonzalez, C. (2024). "Industrial Applications of Titanium Clad Materials in Corrosive Environments." Anti-Corrosion Methods and Materials, 71(1), 28-42.
