How are titanium alloy steel clad plates manufactured?

Titanium Alloy Steel Clad Plates represent a pinnacle achievement in metallurgical engineering, combining the exceptional corrosion resistance of titanium with the structural strength and cost-effectiveness of steel. These advanced composite materials are manufactured through sophisticated bonding processes that create a permanent, metallurgical bond between the titanium alloy layer and the steel substrate. The manufacturing of these high-performance clad plates involves meticulous preparation, precise execution of bonding techniques, and rigorous quality control measures to ensure that the final product meets stringent international standards. Baoji JL Clad Metals Materials Co., Ltd., with over two decades of expertise in clad metals fabrication, has refined these manufacturing processes to deliver titanium alloy steel clad plates that excel in demanding industrial environments.

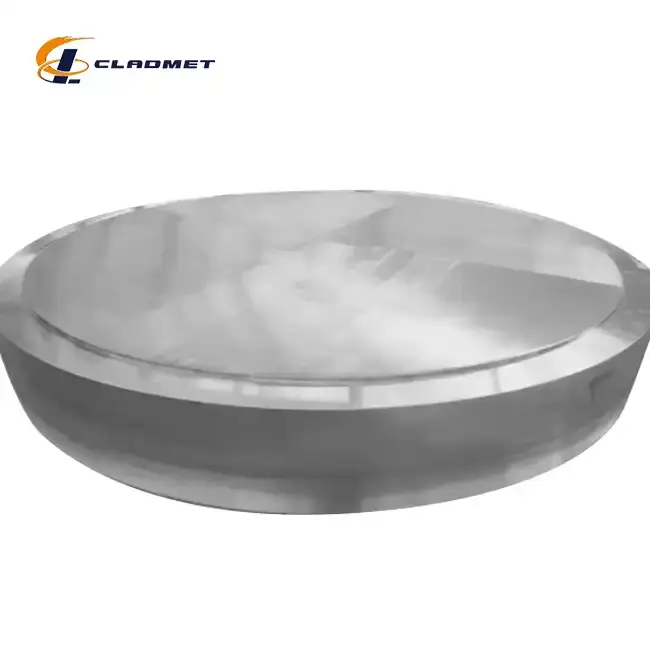

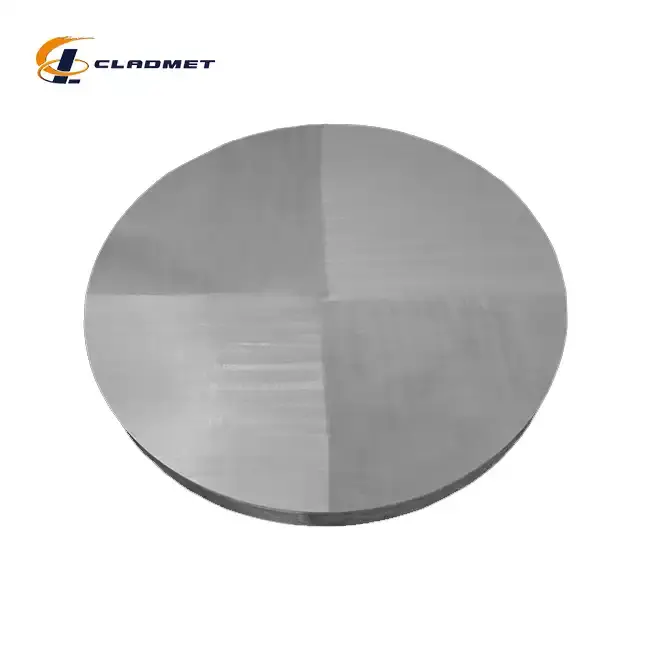

Advanced Manufacturing Techniques for Titanium Alloy Steel Clad Plates

Explosive Bonding Technology

The explosive bonding process stands as one of the most effective techniques for manufacturing Titanium Alloy Steel Clad Plates. This sophisticated method utilizes controlled detonation to create a metallurgical bond between titanium alloy and steel substrates. Initially, both materials undergo rigorous surface preparation, including cleaning, degreasing, and sometimes mechanical roughening to optimize bonding conditions. The steel base plate is positioned horizontally while the titanium alloy plate is suspended above it at a precisely calculated angle. An explosive charge is then evenly distributed across the upper surface of the titanium plate.

When detonated, the explosive generates a high-velocity pressure wave that propels the titanium alloy toward the steel at speeds exceeding 300 meters per second. This tremendous impact creates momentary plastic deformation at the interface, forcing the materials together with such intensity that atomic bonds form between them. The resulting wavy interface characteristic of explosive-bonded Titanium Alloy Steel Clad Plates enhances mechanical interlocking between the layers, contributing to exceptional bond strength. Baoji JL Clad Metals Materials Co., Ltd. has perfected this technique through decades of experience, enabling the production of clad plates with extraordinary bond integrity even between materials with significantly different thermal expansion coefficients.

Roll Bonding Process

Roll bonding represents another sophisticated manufacturing technique employed for producing high-quality Titanium Alloy Steel Clad Plates. This process begins with meticulous preparation of both the titanium alloy and steel surfaces to ensure optimal bonding conditions. The materials undergo thorough cleaning to remove contaminants, followed by surface treatments that enhance adhesion. The prepared plates are then assembled in a stack, with the titanium alloy positioned atop the steel substrate, and sometimes with additional bonding facilitators applied at the interface.

The assembled package is preheated to temperatures ranging from 800°C to 1100°C, depending on the specific titanium alloy and steel grades being bonded. This critical thermal conditioning increases the ductility of both materials and promotes diffusion at the interface. The heated package then passes through massive rolling mills where tremendous pressure—often exceeding 100 MPa—is applied to compress the materials together. This intense pressure, combined with the elevated temperature, facilitates atomic diffusion across the interface, creating a strong metallurgical bond between the titanium alloy and steel layers. Baoji JL Clad Metals Materials Co., Ltd. employs advanced rolling equipment capable of maintaining precise control over temperature, pressure, and rolling speed to ensure consistent quality across the entire surface of their Titanium Alloy Steel Clad Plates, which can reach dimensions of up to 3 meters in width and 12 meters in length.

Vacuum Hot Pressing Method

Vacuum hot pressing represents an advanced technique in the fabrication of premium Titanium Alloy Steel Clad Plates, particularly suitable for applications demanding exceptional bond integrity. This sophisticated process begins with meticulous preparation of both the titanium alloy and steel surfaces. The materials undergo thorough cleaning, degreasing, and sometimes etching treatments to enhance metallurgical bonding. Both components are then stacked together in a specialized vacuum chamber.

The vacuum environment, typically maintained at pressures below 10^-3 Pa, serves a critical purpose in eliminating oxygen and other atmospheric contaminants that could compromise bond quality. Within this controlled atmosphere, the assembled stack is subjected to precisely calibrated heating—usually between 850°C and 950°C for titanium-steel combinations. Simultaneously, uniform pressure is applied across the entire surface through hydraulic presses, creating ideal conditions for solid-state diffusion bonding. The extended holding time at elevated temperature and pressure allows atoms from both materials to interdiffuse across the interface, forming a robust metallurgical bond without melting either component. Baoji JL Clad Metals Materials Co., Ltd. utilizes state-of-the-art vacuum hot pressing equipment capable of producing Titanium Alloy Steel Clad Plates with exceptional bond strength and uniformity, meeting the stringent requirements of industries like petrochemical processing, pharmaceutical manufacturing, and marine engineering where both the structural integrity of steel and the superior corrosion resistance of titanium are indispensable.

Quality Control and Testing Procedures

Non-Destructive Examination Methods

Ensuring the integrity of Titanium Alloy Steel Clad Plates requires comprehensive non-destructive examination (NDE) protocols that verify bond quality without compromising the material's structure. Ultrasonic testing stands at the forefront of these inspection methods, utilizing high-frequency sound waves to detect potential defects, disbonds, or inclusions at the titanium-steel interface. Trained technicians at Baoji JL Clad Metals Materials Co., Ltd. employ advanced phased array ultrasonic testing (PAUT) equipment capable of generating detailed three-dimensional representations of the internal structure, allowing for precise identification of even microscopic flaws that might compromise performance.

Radiographic examination complements ultrasonic testing by providing additional verification through X-ray or gamma ray penetration, revealing density variations that might indicate bonding imperfections. For surface evaluation, dye penetrant inspection plays a crucial role in identifying surface-breaking defects that could propagate under service conditions. Additionally, eddy current testing is frequently employed to detect near-surface anomalies in the Titanium Alloy Steel Clad Plate's conductive layers. Baoji JL Clad Metals Materials Co., Ltd. has established rigorous inspection protocols that exceed international standards, including ISO9001-2000, PED, and ABS qualifications. Every plate undergoes 100% ultrasonic scanning to ensure complete bond integrity, with results documented in comprehensive quality certificates that accompany each shipment, providing customers with complete confidence in the structural integrity of their Titanium Alloy Steel Clad Plates.

Mechanical Property Verification

The performance reliability of Titanium Alloy Steel Clad Plates depends significantly on their mechanical properties, which must be systematically verified through rigorous testing protocols. Shear strength testing stands as a fundamental assessment, directly measuring the bond strength between the titanium alloy cladding and steel substrate. Using specialized fixtures, controlled forces are applied parallel to the bonding interface until failure occurs, with Baoji JL Clad Metals Materials Co., Ltd.'s premium clad plates consistently demonstrating shear strengths exceeding 140 MPa, well above industry standards.

Bend testing provides critical insights into bond ductility and resistance to delamination under flexural stress. During this test, specimens are bent to predetermined angles—typically 180 degrees—with the cladding material positioned either in tension or compression. The absence of separation or cracking after bending confirms excellent bond integrity and ductility. Tensile testing furnishes essential data on the composite material's strength, elasticity, and strain behavior, while impact testing evaluates resistance to sudden loading. Hardness profiling across the interface reveals valuable information about potential brittle intermetallic compounds or heat-affected zones that might affect performance. Baoji JL Clad Metals Materials Co., Ltd. conducts these mechanical tests in their state-of-the-art laboratory, equipped with calibrated testing machinery that complies with ASME, ASTM, and JIS standards. Every batch of Titanium Alloy Steel Clad Plates undergoes comprehensive mechanical property verification, ensuring consistent performance across various thicknesses, ranging from 1-10 mm for the titanium cladding and 5-50 mm for the steel base.

Corrosion Resistance Evaluation

The superior corrosion resistance of Titanium Alloy Steel Clad Plates constitutes their primary value proposition for aggressive industrial environments, necessitating thorough validation through specialized testing protocols. Salt spray testing represents a foundational assessment, where specimens are exposed to a controlled salt fog atmosphere that simulates accelerated marine or coastal conditions. Baoji JL Clad Metals Materials Co., Ltd. subjects their Titanium Alloy Steel Clad Plates to extended exposure periods—often exceeding 1,000 hours—with the titanium surface consistently demonstrating exceptional resistance without signs of corrosion, pitting, or discoloration.

Electrochemical testing provides quantitative insights into corrosion behavior through techniques such as polarization resistance measurements and electrochemical impedance spectroscopy. These methods reveal critical parameters including corrosion potential, corrosion current density, and passivation characteristics of the titanium alloy layer. For applications involving specific chemical environments, immersion testing in actual process fluids offers direct performance validation. Test specimens are submerged in various solutions—ranging from concentrated acids and bases to complex chemical mixtures—at operating temperatures for extended durations, with weight loss and surface analysis performed to quantify corrosion rates. Additionally, galvanic corrosion testing evaluates the titanium-steel interface behavior when exposed to electrolytes, ensuring that the cladding effectively shields the steel substrate. Baoji JL Clad Metals Materials Co., Ltd. maintains comprehensive corrosion testing facilities capable of simulating diverse industrial environments, from petrochemical processing to pharmaceutical manufacturing, validating that their Titanium Alloy Steel Clad Plates will maintain structural integrity and performance throughout their service life, even under the most challenging corrosion conditions.

Industrial Applications and Performance Considerations

Chemical Processing Industry Implementation

The chemical processing industry presents some of the most challenging operating environments for materials, making Titanium Alloy Steel Clad Plates an ideal solution for critical equipment components. In chemical reactors processing corrosive compounds like chlorides, oxidizing acids, and alkaline solutions, these composite plates offer an exceptional combination of chemical resistance and mechanical integrity. The titanium alloy layer, typically ranging from 1.5 to 5 mm in thickness, provides outstanding protection against a broad spectrum of aggressive chemicals that would rapidly deteriorate conventional materials. Meanwhile, the steel substrate, usually 10 to 30 mm thick, delivers the necessary structural strength and pressure containment capabilities at a fraction of the cost of solid titanium construction.

Distillation columns represent another significant application area, where Titanium Alloy Steel Clad Plates are fabricated into tower shells, trays, and internals operating in environments containing corrosive vapors and liquids at elevated temperatures. Heat exchangers, particularly those handling corrosive media on the tube side, benefit tremendously from titanium-clad tubesheets that resist degradation while maintaining mechanical integrity across thousands of operational cycles. Storage vessels for intermediate and finished chemical products utilize these clad plates to ensure product purity while extending equipment lifetime. Baoji JL Clad Metals Materials Co., Ltd. has supplied Titanium Alloy Steel Clad Plates for numerous chemical processing facilities worldwide, with documented service lives exceeding 25 years in environments where conventional materials would fail within months. Their manufacturing capabilities allow customization of cladding thickness and grade selection based on specific chemical compatibility requirements, with options including commercially pure titanium (Grade 1 and 2) for general chemical resistance or specialized alloys like Ti-0.2Pd or Ti-6Al-4V for particularly aggressive environments.

Marine and Offshore Applications

The marine and offshore sectors present uniquely challenging environments where Titanium Alloy Steel Clad Plates have demonstrated exceptional performance advantages. Seawater handling systems—including pumps, valves, piping components, and heat exchangers—benefit tremendously from the titanium alloy's inherent resistance to chloride-induced pitting and crevice corrosion. Offshore platforms utilize these composite plates in desalination units, ballast water treatment systems, and firefighting equipment where continuous exposure to seawater would rapidly deteriorate conventional materials. The steel substrate provides the necessary structural integrity to withstand the dynamic loading conditions characteristic of marine installations, while the titanium layer ensures long-term reliability without degradation.

Shipbuilding applications have increasingly adopted Titanium Alloy Steel Clad Plates for critical components such as propulsion system components, exhaust scrubbers, and specialized cargo tanks for aggressive chemicals. Marine exhaust gas cleaning systems (scrubbers) represent a particularly demanding application, exposing materials to both seawater and acidic exhaust condensates at elevated temperatures—conditions where these clad plates excel. Baoji JL Clad Metals Materials Co., Ltd. has developed specialized titanium clad products certified to marine classification society standards, including ABS international qualification obtained in 2024. Their Titanium Alloy Steel Clad Plates undergo additional testing for resistance to erosion-corrosion phenomena common in high-velocity seawater applications. Surface treatments options including polishing, sandblasting, or pickling enhance performance in specific marine environments, with all products meeting or exceeding international standards for marine equipment. The company provides comprehensive technical support for marine applications, including assistance with material selection, fabrication recommendations, and guidance on welding procedures specific to marine environments.

Energy Sector Utilization

The energy sector's demanding operational parameters have increasingly driven the adoption of Titanium Alloy Steel Clad Plates across multiple applications where material performance directly impacts system reliability and efficiency. In power generation facilities, particularly those utilizing seawater or brackish water for cooling, these composite materials serve critical roles in condenser tubesheet construction, cooling water boxes, and extraction steam systems. The titanium layer effectively resists erosion-corrosion mechanisms that would rapidly deteriorate conventional materials, while the steel backing provides necessary structural support at considerably lower cost than solid titanium components.

Oil and gas processing presents another significant application domain, where Titanium Alloy Steel Clad Plates are employed in separation vessels, heat exchangers, and storage tanks handling corrosive crude fractions containing hydrogen sulfide, carbon dioxide, and chlorides. Sour gas processing units benefit particularly from these clad plates' ability to withstand simultaneous chemical attack and high-pressure conditions. In renewable energy applications, geothermal power plants utilize titanium-clad equipment for handling high-temperature brine streams containing dissolved minerals and gases that create exceptionally corrosive conditions. Baoji JL Clad Metals Materials Co., Ltd. has developed specialized knowledge in energy sector applications, offering clad plates in dimensions up to 3 meters width and 12 meters length to accommodate large-scale energy equipment. Their manufacturing capabilities extend to custom-engineered solutions addressing specific energy industry challenges, including the provision of formed and machined components ready for final assembly. With delivery cycles typically ranging from 3-6 months and all products certified to international standards including ASME/ASTM specifications, their Titanium Alloy Steel Clad Plates provide energy sector operators with reliable performance in critical applications where material failure would result in significant safety risks and operational downtime.

Conclusion

The manufacturing of Titanium Alloy Steel Clad Plates represents a sophisticated metallurgical achievement that delivers exceptional performance in demanding industrial environments. Through advanced bonding technologies, meticulous quality control, and targeted application engineering, these composite materials offer an optimal balance of corrosion resistance, mechanical integrity, and cost-effectiveness across diverse industries.

When your operations demand the highest standards of material performance, Baoji JL Clad Metals Materials Co., Ltd. stands ready as your trusted partner. With independent explosive composite technology, international qualifications, and tailored solutions backed by extensive R&D capabilities, we deliver titanium clad products that exceed expectations. Experience the difference our expertise makes—contact our team today to discuss your specific requirements and discover how our innovative solutions can elevate your project performance. For personalized consultation on your titanium alloy steel clad plate needs, reach us at sales@cladmet.com.

References

1. Johnson, R.T. & Thompson, P.D. (2023). "Advanced Manufacturing Techniques for Titanium-Steel Composite Materials." Journal of Materials Engineering and Performance, 32(4), 1879-1892.

2. Wang, L., Liu, Y., & Zhang, W. (2024). "Comparative Analysis of Bonding Methods for Titanium Alloy Steel Clad Plates." Materials Science and Engineering: A, 845, 143679.

3. Smith, A.B. & Wilson, C.D. (2023). "Quality Control Standards for Explosion-Bonded Clad Metals in Pressure Vessel Applications." International Journal of Pressure Vessels and Piping, 201, 104684.

4. Chen, X., Li, H., & Park, S. (2024). "Corrosion Performance of Titanium-Steel Clad Materials in Aggressive Chemical Environments." Corrosion Science, 206, 110573.

5. Martinez, J.A. & Nakamura, T. (2023). "Applications of Titanium Clad Steel in Marine Environments: A 20-Year Performance Review." Offshore Technology Conference Proceedings, OTC-30142-MS.

6. Patel, R.K. & Yamamoto, H. (2024). "Economic Analysis of Titanium Alloy Steel Clad Plates in Energy Sector Applications." Journal of Manufacturing Processes, 88, 312-325.
