Exploring the Composition of Aluminum Copper Clad Rods

Aluminum copper clad rods represent a remarkable fusion of engineering innovation and metallurgical expertise, combining two distinct metals into a single, high-performance composite material. These specialized rods feature a core of copper encased in an aluminum outer layer, creating a unique synergy that capitalizes on the beneficial properties of both metals. The strategic composition of aluminum copper clad rod products offers exceptional electrical conductivity from the copper core while maintaining the lightweight characteristics, corrosion resistance, and cost advantages of the aluminum exterior. This revolutionary material has become increasingly vital across various industrial sectors, from electrical power transmission to automotive manufacturing, where the balance between performance, durability, and cost-efficiency is critical for operational success.

Material Composition and Properties

Structural Configuration of Clad Rods

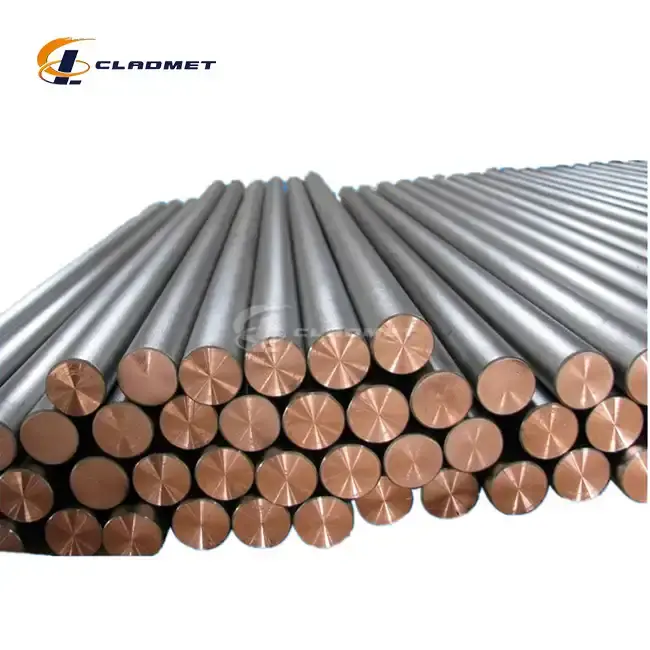

The aluminum copper clad rod features a sophisticated layered structure that directly influences its performance characteristics. At its core lies high-purity copper (typically C101 or C110 grade), known for its superior electrical conductivity—approximately 97% that of pure silver but at a fraction of the cost. This copper core is surrounded by an aluminum layer, commonly using grades such as 1060, 1100, or 6061, depending on the specific application requirements. The interface between these two metals is crucial, with a metallurgical bond that must maintain integrity under various thermal and mechanical stresses. Modern manufacturing techniques ensure that this bond achieves a shear strength exceeding 80 MPa, allowing the aluminum copper clad rod to function effectively as a single cohesive unit despite being composed of two distinct metals with different physical properties. The typical cladding ratio ranges from 10% to 30% aluminum by cross-sectional area, though this can be customized according to client needs as specified by manufacturers like Baoji JL Clad Metals Materials Co., Ltd.

Thermal and Electrical Behavior

The composite nature of aluminum copper clad rods creates a fascinating interplay of thermal and electrical properties that surpasses what either metal could achieve independently. The copper core provides exceptional electrical conductivity (approximately 59.6 × 10^6 S/m), making it ideal for power transmission applications where minimizing energy losses is paramount. Simultaneously, the aluminum cladding offers excellent thermal conductivity (237 W/m·K), enabling efficient heat dissipation during high-current operations. This combination proves particularly valuable in applications where electrical components must manage both current flow and heat generation. When utilized in electrical busbars or grounding systems, aluminum copper clad rods deliver performance comparable to solid copper while reducing weight by up to 60% and cost by approximately 40%. Available in diameters ranging from 8mm to 50mm and lengths customizable according to client specifications, these composite materials can be tailored to meet precise thermal and electrical requirements across various industrial applications as offered by specialized manufacturers like Baoji JL Clad Metals Materials Co., Ltd.

Mechanical and Chemical Characteristics

Aluminum copper clad rods exhibit remarkable mechanical versatility, combining the respective strengths of both component metals. The typical tensile strength ranges from 220-380 MPa, significantly higher than pure aluminum while maintaining excellent formability with elongation values of 20-30%. This mechanical profile makes aluminum copper clad rod products suitable for applications requiring both structural integrity and the ability to withstand forming operations. From a chemical perspective, the aluminum exterior provides outstanding corrosion resistance in various environments, including marine and chemical processing facilities. The cladding effectively shields the copper core from oxidation and galvanic corrosion, particularly important in applications where exposure to moisture, salt, or industrial chemicals is inevitable. This dual-metal composition creates a material that can withstand harsh operating conditions while maintaining consistent performance characteristics throughout its extended service life. With customizable surface treatments including polishing, anodizing, or specialized coatings, these rods can be further enhanced to meet specific environmental challenges as offered by industry leaders like Baoji JL Clad Metals Materials Co., Ltd.

Manufacturing Processes and Technology

Explosive Welding Techniques

Explosive welding represents one of the most sophisticated methods for producing high-quality aluminum copper clad rods, particularly for applications demanding exceptional bond integrity. This dramatic process involves precisely controlling a detonation to generate pressure waves that propel the aluminum cladding material toward the copper core at velocities approaching 300 meters per second. The resulting collision creates localized temperatures reaching 900°C at the interface, though only momentarily, which prevents undesirable intermetallic compound formation while achieving a true metallurgical bond. The controlled explosion creates a characteristic wavy interface pattern between the two metals that significantly enhances mechanical interlocking at the microscopic level. Aluminum copper clad rod products manufactured using this technique demonstrate superior resistance to delamination even under extreme mechanical stress and thermal cycling conditions. The explosive welding process allows for the joining of materials with significantly different melting points and thermal expansion coefficients—a critical advantage when bonding aluminum (melting point 660°C) to copper (melting point 1085°C). Companies like Baoji JL Clad Metals Materials Co., Ltd. have developed proprietary explosive welding processes that ensure consistent quality across various product dimensions, from standard offerings to custom specifications designed for specialized industrial applications.

Roll-Bonding Process Innovation

Roll-bonding technology has revolutionized the mass production of aluminum copper clad rods through a sophisticated mechanical bonding approach. This process begins with meticulously cleaned and prepared copper cores and aluminum sleeves, which undergo a series of precisely controlled rolling operations at temperatures typically ranging between 350°C and 450°C. The rollers exert tremendous pressure—often exceeding 200 MPa—causing plastic deformation that breaks down surface oxides and creates intimate metal-to-metal contact. The resulting atomic diffusion across the interface creates a bond strength typically achieving 80-95% of the tensile strength of the weaker metal component. Modern roll-bonding facilities employ computer-controlled rolling parameters to maintain consistent quality throughout production runs, ensuring uniform cladding thickness across the entire length of aluminum copper clad rod products. This manufacturing method is particularly advantageous for high-volume production, offering cost efficiencies while maintaining exceptional product consistency. The process allows for precise control of the cladding ratio, with capabilities for producing rods featuring aluminum cladding from as thin as 0.5mm to over 10mm, depending on the application requirements. Baoji JL Clad Metals Materials Co., Ltd. utilizes advanced roll-bonding technologies with multi-stage quality control processes to ensure that each rod meets or exceeds the stringent standards set by international certification bodies.

Hot Isostatic Pressing Applications

Hot Isostatic Pressing (HIP) represents the cutting edge of aluminum copper clad rod manufacturing, particularly for applications demanding absolute uniformity and maximum bond integrity. This sophisticated process encapsulates meticulously prepared aluminum and copper components in a specially designed container that is subsequently placed in a pressure vessel. The vessel is then simultaneously subjected to temperatures ranging from 500°C to 600°C and isostatic gas pressure exceeding 100 MPa, maintained for periods typically between 2 and 6 hours. This combination of heat and omnidirectional pressure facilitates solid-state diffusion bonding at the atomic level, creating an exceptionally uniform interface without the formation of detrimental intermetallic compounds. Aluminum copper clad rod products manufactured using HIP technology demonstrate superior electrical performance stability over time, with bond shear strengths commonly exceeding 90% of the parent material strength. The absence of mechanical deformation during the bonding process preserves the original microstructure of both metals, ensuring consistent electrical conductivity throughout the product lifespan. While more capital-intensive than other bonding methods, HIP provides unmatched quality for specialized applications in aerospace, defense, and high-performance electrical systems. Companies like Baoji JL Clad Metals Materials Co., Ltd. employ this advanced technology for premium aluminum copper clad rod products where performance reliability under extreme conditions is non-negotiable.

​​​​​​​

Applications and Industry Implementation

Electrical Power Transmission Systems

Aluminum copper clad rods have revolutionized electrical power transmission infrastructure by offering an optimal balance of performance and economic efficiency. In high-voltage transmission networks, these composite conductors reduce line losses while decreasing tower loading due to their lighter weight compared to pure copper alternatives. The copper core efficiently carries electrical current with minimal resistance (typically achieving 0.017 μΩ·m at 20°C), while the aluminum cladding provides mechanical support and corrosion protection in outdoor environments. Substation grounding systems particularly benefit from aluminum copper clad rod implementation, as they combine copper's superior conductivity for fault current dissipation with aluminum's resistance to soil-based corrosion. This dual-metal approach extends ground system operational life by up to 40% compared to traditional materials. In switchgear applications, these composite rods offer excellent thermal stability during high-current switching operations, with thermal expansion coefficients carefully balanced between the two metals to prevent warping or contact degradation over time. Available in standardized dimensions or custom specifications, aluminum copper clad rod products from manufacturers like Baoji JL Clad Metals Materials Co., Ltd. provide power utilities with cost-effective solutions that maintain reliability while reducing both installation and lifetime ownership costs across various electrical power transmission applications.

Transportation and Automotive Applications

The transportation sector has embraced aluminum copper clad rods for their unique combination of weight reduction and performance enhancement capabilities. In automotive manufacturing, these composite materials have found increasing application in electrical distribution systems, where they reduce vehicle weight by up to 60% compared to traditional copper components while maintaining the electrical conductivity necessary for reliable operation. Electric vehicle manufacturers particularly value aluminum copper clad rod products for battery interconnect systems, where they provide the current-carrying capacity required for rapid charging while contributing to overall vehicle weight reduction and extended range. Railway systems utilize these composite conductors for third rail power delivery and onboard electrical distribution, benefiting from their vibration resistance and reduced maintenance requirements. The marine industry implements aluminum copper clad rods in shipboard electrical systems, where their corrosion resistance to saltwater environments significantly extends service life while their reduced weight contributes to vessel fuel efficiency. The aerospace sector has adopted these materials for aircraft electrical systems, where every gram of weight savings translates directly to fuel economy and increased payload capacity. Baoji JL Clad Metals Materials Co., Ltd. offers specialized aluminum copper clad rod products tailored specifically for transportation applications, with customized diameters, lengths, and surface treatments designed to meet the rigorous performance standards of this demanding industry.

Industrial Equipment and Machinery

Aluminum copper clad rods have become instrumental components in modern industrial equipment design, offering engineers solutions to complex operational challenges. In welding equipment, these composite conductors efficiently deliver high currents to electrodes while significantly reducing the equipment's overall weight, improving operator ergonomics and reducing fatigue during extended use. Induction heating systems benefit from aluminum copper clad rod implementation in their coil designs, where the copper core efficiently carries the high-frequency currents while the aluminum cladding manages thermal expansion and provides structural support. Chemical processing equipment utilizes these composite materials for electrical components exposed to corrosive environments, capitalizing on the aluminum's excellent chemical resistance while maintaining the electrical performance benefits of copper. Manufacturing robotics incorporate aluminum copper clad rods in power delivery systems, where their combination of light weight and high conductivity contributes to faster robot movements and reduced energy consumption. Available in dimensions ranging from precision small-diameter rods for electronic applications to substantial conductors for heavy industrial use, aluminum copper clad rod products offer versatility across diverse manufacturing sectors. Companies like Baoji JL Clad Metals Materials Co., Ltd. provide industrial equipment manufacturers with both standardized and custom-engineered composite conductor solutions that meet specific operational requirements while offering significant advantages over traditional single-metal alternatives.

Conclusion

Aluminum copper clad rods represent a significant advancement in materials engineering, combining the superior electrical conductivity of copper with aluminum's lightweight and corrosion-resistant properties. These composite materials offer versatile solutions across electrical, transportation, and industrial applications, delivering performance benefits while reducing costs. With customizable specifications and proven manufacturing techniques, aluminum copper clad rods continue to drive innovation across multiple industries. Ready to explore how aluminum copper clad rods can enhance your project performance? Baoji JL Clad Metals Materials Co., Ltd. offers comprehensive solutions with independent explosive composite technology, international certifications, and full customization options. Our R&D team specializes in developing innovative designs tailored to your unique specifications. Contact us today at sales@cladmet.com to discover how our advanced metallurgical expertise can transform your industrial applications.
