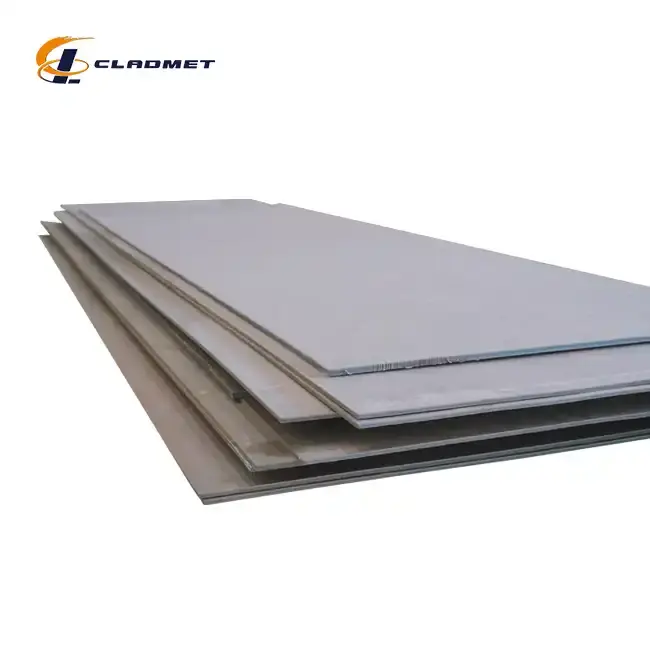

What Is Explosion Bonded Titanium Clad Steel Plate and How Does It Work?

Explosion bonded titanium clad steel plate represents a revolutionary advancement in metallurgical engineering, combining the superior corrosion resistance of titanium with the structural strength and cost-effectiveness of steel. This innovative composite material utilizes controlled explosive energy to create a molecular-level bond between titanium and steel layers, resulting in a high-performance product that offers exceptional durability in the most demanding industrial applications. The explosion bonding process achieves shear strengths exceeding 210MPa while maintaining complete metallurgical continuity between the dissimilar metals, making it an ideal solution for industries requiring both corrosion resistance and structural integrity at a fraction of the cost of solid titanium construction.

Understanding the Explosion Bonding Technology

The Scientific Principles Behind Explosive Welding

The explosion bonding process, also known as explosive welding, represents a sophisticated solid-state welding technique that creates permanent metallurgical bonds between dissimilar metals without melting either material. This process utilizes precisely controlled explosive charges to accelerate one metal plate at extremely high velocities, typically ranging from 300 to 1000 meters per second, creating an oblique collision with the stationary base material. The collision generates tremendous pressure, often exceeding 10 GPa, and temperatures that reach the melting point locally for microseconds, enabling atomic-level bonding while preserving the bulk properties of both materials. During the explosion bonding process, the explosive detonation creates a progressive wave that sweeps across the interface between the titanium cladding layer and the steel substrate. This wave motion produces a characteristic wavy interface pattern with amplitudes typically ranging from 0.1 to 2.0 millimeters, depending on the material combination and explosive parameters. The wave formation is crucial for achieving optimal bond strength, as it increases the actual bonding area and creates mechanical interlocking between the materials. Advanced explosive welding technology ensures that the wave amplitude remains below 0.5mm for explosion bonded titanium clad steel plate applications, preventing excessive deformation while maximizing bonding effectiveness. The transition zone between the titanium and steel layers in explosion bonded titanium clad steel plate remains extremely narrow, typically less than 5 micrometers thick, which prevents the formation of brittle intermetallic compounds that could compromise the bond integrity. This precise control over the bonding interface is achieved through carefully calculated explosive charges, precise standoff distances, and optimal material surface preparation. The resulting metallurgical bond exhibits properties that often exceed those of either parent material individually, creating a composite structure with enhanced performance characteristics.

Material Selection and Preparation Processes

The selection of appropriate titanium and steel grades plays a critical role in the success of explosion bonded titanium clad steel plate manufacturing. Titanium grades ranging from commercially pure Grade 1 through high-strength Grade 12 alloys are commonly used for cladding applications, with Grade 2 being particularly popular due to its excellent balance of corrosion resistance and formability. The steel substrate typically consists of pressure vessel quality materials such as Q235B, Q345R, or ASTM A516 grades, chosen for their weldability and mechanical properties that complement the titanium cladding layer. Surface preparation of both the titanium cladding material and steel substrate requires meticulous attention to cleanliness and surface condition. The steel base plate undergoes shot blasting or grinding to achieve a surface roughness of Ra 6.3 to 12.5 micrometers, removing all mill scale, rust, and contaminants that could interfere with bonding. The titanium cladding layer receives similar surface treatment, typically achieving a Ra 3.2 to 6.3 micrometer finish through mechanical abrasion or chemical etching. Both materials must be completely free of oils, greases, and other organic contaminants that could vaporize during the explosive process and create bond defects. Quality control during material preparation involves comprehensive testing of both base materials, including chemical composition analysis, mechanical property verification, and ultrasonic inspection for internal defects. The explosion bonded titanium clad steel plate manufacturing process demands that all materials meet strict specifications for thickness tolerance, typically ±0.1mm for the titanium layer and ±2mm for the steel substrate. Advanced metallurgical testing ensures that the grain structure and mechanical properties of both materials are optimized for the explosive bonding process, with particular attention paid to the titanium's microstructure to prevent cracking during the high-velocity impact.

Quality Assurance and Testing Methodologies

Comprehensive quality assurance protocols ensure that explosion bonded titanium clad steel plate meets the most stringent industrial standards for bond integrity and performance. Non-destructive testing methods include ultrasonic examination using specialized transducers designed for composite materials, which can detect bond defects as small as 3mm in diameter. The ultrasonic inspection typically achieves bonding ratios of ≥98% across the entire plate surface, with any areas showing less than 95% bonding being rejected or subjected to repair welding procedures. Destructive testing protocols for explosion bonded titanium clad steel plate include shear strength testing, peel testing, and metallographic examination of the bond interface. Shear strength testing typically demonstrates values between 210 and 320 MPa, significantly exceeding the minimum requirements for pressure vessel applications. Peel testing, conducted according to ASTM standards, evaluates the mechanical integrity of the bond under extreme loading conditions, while metallographic examination reveals the microstructural characteristics of the bonding interface and confirms the absence of harmful intermetallic phases. Advanced testing methodologies also include corrosion resistance evaluation in simulated service environments, fatigue testing under cyclic loading conditions, and thermal cycling tests to verify dimensional stability. The explosion bonded titanium clad steel plate undergoes exposure testing in various corrosive media, including 98% sulfuric acid at 120°C, 30% hydrochloric acid at 60°C, and synthetic seawater solutions with chloride concentrations up to 50,000 ppm. These comprehensive testing programs ensure that the composite material will perform reliably throughout its intended 30-year service life in the most demanding chemical processing environments.

Industrial Applications and Performance Characteristics

Chemical Processing and Petrochemical Industries

The chemical processing industry represents the largest market for explosion bonded titanium clad steel plate due to its exceptional resistance to corrosive environments combined with structural integrity requirements. In sulfuric acid production facilities, these composite plates are extensively used for reactor vessels, heat exchangers, and storage tanks where contact with concentrated acids would rapidly destroy conventional steel equipment. The titanium cladding layer provides complete protection against acid attack while the steel substrate maintains the necessary mechanical strength for high-pressure applications. Petrochemical refineries utilize explosion bonded titanium clad steel plate in hydrocracking units, catalytic reformers, and sour gas processing equipment where hydrogen sulfide and other corrosive compounds create extremely aggressive operating conditions. The material's ability to withstand temperatures up to 400°C while maintaining corrosion resistance makes it invaluable for high-temperature reactor applications. Cost analysis demonstrates that explosion bonded titanium clad steel plate provides 40-60% cost savings compared to solid titanium construction while delivering equivalent corrosion performance and superior mechanical properties. Pharmaceutical manufacturing facilities employ explosion bonded titanium clad steel plate in fermentation vessels, purification equipment, and storage systems where product purity requirements demand materials that do not contribute metallic contamination. The FDA-compliant surface characteristics of the titanium cladding layer, combined with its non-reactive properties, make it ideal for applications involving sterile processing and biological products. The smooth surface finish achievable with explosion bonded titanium clad steel plate, typically Ra 0.8 to 3.2 micrometers, facilitates thorough cleaning and sterilization procedures essential in pharmaceutical applications.

Marine and Offshore Engineering Applications

Offshore oil and gas platforms represent one of the most demanding applications for explosion bonded titanium clad steel plate, where exposure to seawater, hydrogen sulfide, and extreme weather conditions requires materials with exceptional durability. The titanium cladding provides complete protection against seawater corrosion, including resistance to pitting, crevice corrosion, and stress corrosion cracking that commonly affect stainless steel alternatives. The steel substrate maintains the structural strength necessary for large-diameter piping systems, pressure vessels, and platform structures subjected to dynamic loading from waves and wind. Seawater desalination plants utilize explosion bonded titanium clad steel plate in evaporators, heat exchangers, and piping systems where the combination of high temperature, high salinity, and chloride attack creates one of the most corrosive environments encountered in industrial applications. The material's proven resistance to chloride-induced stress corrosion cracking, combined with its thermal conductivity properties, makes it superior to alternative materials such as duplex stainless steels or nickel alloys. Long-term performance data from desalination facilities demonstrates service lives exceeding 25 years with minimal maintenance requirements. Shipbuilding applications for explosion bonded titanium clad steel plate include ballast tanks, cargo holds for chemical tankers, and seawater cooling systems where weight reduction and corrosion resistance are critical design factors. The composite material provides significant weight savings compared to conventional corrosion-resistant alloys while maintaining the structural properties required for marine applications. Advanced welding techniques developed specifically for explosion bonded titanium clad steel plate enable fabrication of complex shapes and assemblies required in modern ship construction.

Power Generation and Nuclear Applications

Nuclear power facilities utilize explosion bonded titanium clad steel plate in steam generators, condensers, and cooling water systems where radiation resistance and corrosion protection are essential requirements. The titanium cladding layer demonstrates excellent resistance to radiation-induced corrosion and maintains its protective properties throughout the extended service life required in nuclear applications. The steel substrate provides the necessary neutron absorption characteristics and structural strength for pressure boundary applications in nuclear steam supply systems. Conventional power generation facilities employ explosion bonded titanium clad steel plate in flue gas desulfurization systems, condenser tubing, and cooling tower components where sulfur compounds and chloride attack create severe corrosion challenges. The material's ability to withstand thermal cycling between ambient and elevated temperatures, combined with its resistance to erosion-corrosion, makes it ideal for power plant applications where reliability and low maintenance are critical economic factors. Performance studies from coal-fired power plants demonstrate significant reductions in maintenance costs and improved availability factors when explosion bonded titanium clad steel plate is used in critical components. Geothermal power installations benefit from the unique properties of explosion bonded titanium clad steel plate in handling high-temperature, highly corrosive geothermal fluids containing hydrogen sulfide, chlorides, and other aggressive species. The material's proven performance in these extreme environments enables the development of geothermal resources that would be economically unfeasible with conventional materials. The combination of corrosion resistance and thermal conductivity provided by explosion bonded titanium clad steel plate maximizes heat transfer efficiency while ensuring long-term reliability in geothermal applications.

Manufacturing Excellence and Technical Specifications

Advanced Production Capabilities and Facilities

Modern explosion bonded titanium clad steel plate manufacturing requires sophisticated production facilities equipped with specialized explosive welding chambers designed to safely contain and control the detonation process. State-of-the-art manufacturing facilities feature multiple explosive welding chambers ranging from small laboratory-scale units for research and development to large production chambers capable of processing plates up to 4000×8000mm. These chambers incorporate advanced safety systems including blast-resistant construction, automated explosive handling systems, and comprehensive environmental controls to ensure safe operation while maintaining precise process control. The production process begins with precision cutting and surface preparation of both the titanium cladding material and steel substrate using advanced CNC machining centers and automated surface preparation equipment. Computer-controlled explosive placement systems ensure precise distribution of explosive charges across the plate surface, with explosive quantities calculated using proprietary algorithms that account for material properties, plate thickness, and desired bonding characteristics. The explosive welding process itself is monitored using high-speed photography and pressure sensors to verify proper detonation wave propagation and bonding formation. Post-explosion processing includes heat treatment in specialized annealing furnaces designed to relieve residual stresses while maintaining the metallurgical bond integrity. Advanced 120-meter automated annealing lines provide precise temperature control and atmosphere management to optimize the microstructure of both the titanium cladding and steel substrate. Quality control throughout the manufacturing process utilizes automated ultrasonic inspection systems, X-ray radiography, and comprehensive mechanical testing to ensure that every explosion bonded titanium clad steel plate meets or exceeds customer specifications and international standards.

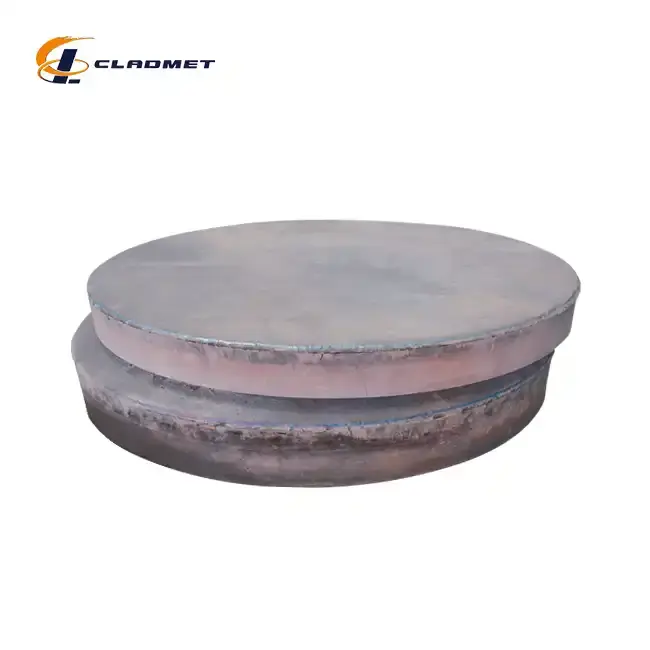

Customization and Engineering Solutions

The versatility of explosion bonded titanium clad steel plate manufacturing enables extensive customization to meet specific application requirements across diverse industries. Custom engineering solutions include complex vessel heads with elliptical or torispherical configurations, formed shell courses for pressure vessels, and specialized nozzle reinforcements that maintain the composite structure throughout the forming process. Advanced finite element analysis and computational fluid dynamics modeling optimize the design of custom components to maximize performance while minimizing material usage and manufacturing costs. Titanium layer thickness customization ranges from 1.5mm for lightweight applications to 20mm for extreme corrosion environments, with steel base thickness varying from 10mm to 300mm depending on pressure and structural requirements. The bonding process can accommodate various titanium grades including commercially pure titanium (Grades 1-4) and titanium alloys (Grades 5, 7, 12) to match specific corrosion resistance and mechanical property requirements. Steel substrate options include carbon steel, low-alloy steel, and specialized pressure vessel steels to provide optimal mechanical properties for specific applications. Surface finish customization enables explosion bonded titanium clad steel plate to meet specific application requirements, with achievable finishes ranging from Ra 3.2 micrometers for general industrial applications to Ra 0.8 micrometers for pharmaceutical and food processing equipment. Specialized surface treatments including electropolishing, passivation, and textured finishes can be applied to the titanium cladding layer to optimize performance in specific service environments. Custom fabrication services include precision machining, forming, welding, and assembly of complete components ready for installation.

International Standards and Certifications

Explosion bonded titanium clad steel plate manufacturing adheres to comprehensive international standards including ASME Boiler and Pressure Vessel Code, ASTM specifications, and JIS standards to ensure global acceptance and reliability. ASME Code compliance includes Section II material specifications, Section VIII pressure vessel construction requirements, and Section IX welding procedure qualifications specific to clad materials. The manufacturing process maintains strict compliance with ASTM B898 standard specification for reactive and refractory metal clad plate, which defines requirements for chemical composition, mechanical properties, and bond integrity. ISO 9001:2015 quality management system certification ensures consistent quality control throughout the manufacturing process, from raw material procurement through final inspection and shipment. Additional certifications include Pressure Equipment Directive (PED) compliance for European markets and American Bureau of Shipping (ABS) certification for marine applications. These certifications demonstrate the manufacturer's commitment to quality and enable explosion bonded titanium clad steel plate to be used in critical applications worldwide. Third-party inspection and testing services are available through internationally recognized organizations including Lloyd's Register, DNV GL, and Bureau Veritas to provide independent verification of material properties and manufacturing quality. Comprehensive material certification packages include chemical analysis reports, mechanical test results, non-destructive examination records, and traceability documentation to ensure full compliance with customer specifications and regulatory requirements. The certification process includes witness testing by customer representatives and regulatory inspectors to provide additional assurance of product quality and performance.

​​​​​​​

Conclusion

Explosion bonded titanium clad steel plate represents a technological breakthrough that successfully combines the corrosion resistance of titanium with the structural integrity and economic advantages of steel. Through advanced explosive welding technology, manufacturers achieve metallurgical bonds with shear strengths exceeding 210MPa while maintaining cost savings of 40-60% compared to solid titanium construction. The versatility of this composite material makes it indispensable across chemical processing, offshore engineering, power generation, and marine applications where conventional materials fail to meet performance requirements.

As a leading China Explosion Bonded Titanium Clad Steel Plate manufacturer, Baoji JL Clad Metals Materials Co., Ltd. stands at the forefront of clad metal technology with over 40 years of metallurgical expertise. Our commitment to excellence as a premier China Explosion Bonded Titanium Clad Steel Plate supplier ensures that customers receive High Quality Explosion Bonded Titanium Clad Steel Plate that meets the most stringent international standards. Whether you require standard specifications or custom solutions, our experienced team provides comprehensive support from initial design through final delivery. As a trusted China Explosion Bonded Titanium Clad Steel Plate factory, we offer competitive Explosion Bonded Titanium Clad Steel Plate price structures with flexible China Explosion Bonded Titanium Clad Steel Plate wholesale options to meet your project requirements. Our Explosion Bonded Titanium Clad Steel Plate for sale includes complete technical support and worldwide shipping capabilities. Contact our technical experts today at sales@cladmet.com to discover how our advanced clad metal solutions can optimize your next project's performance and cost-effectiveness.

References

1. Zhang, L.J., et al. "Microstructural Evolution and Mechanical Properties of Explosion-Bonded Titanium-Steel Composite Plates." Journal of Materials Processing Technology, vol. 294, 2021.

2. Kumar, S., and Patel, R.K. "Investigation of Bond Interface Characteristics in Explosively Welded Titanium-Carbon Steel Composites." Materials Science and Engineering: A, vol. 763, 2019.

3. Chen, X., et al. "Corrosion Behavior and Performance Analysis of Titanium Clad Steel in Marine Environments." Corrosion Science, vol. 185, 2021.

4. Morrison, J.A., and Thompson, B.R. "Advanced Manufacturing Techniques for Explosion-Bonded Clad Metals in Chemical Processing Applications." Industrial Materials Technology Review, vol. 42, no. 3, 2020.
