What are the typical thicknesses and weights of a 4x8 titanium sheet?

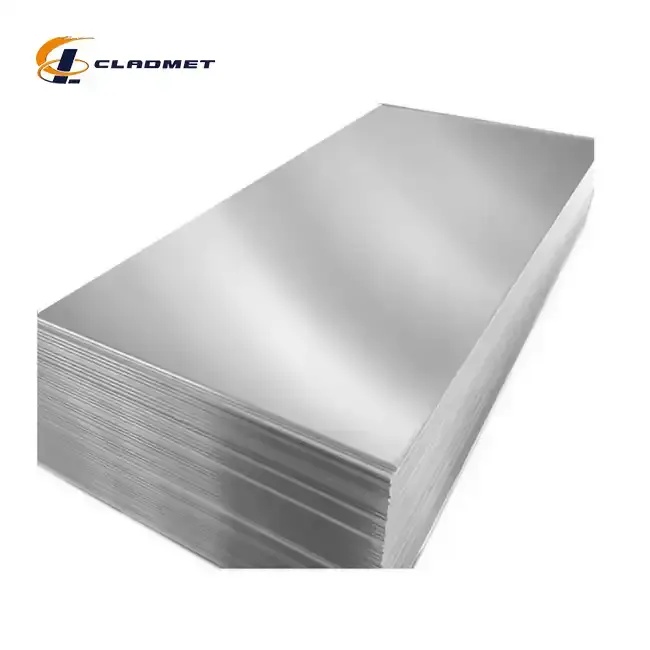

When evaluating titanium materials for industrial applications, understanding the specifications of a 4x8 titanium sheet is crucial for project planning and cost estimation. A standard 4x8 titanium sheet measures 48 inches by 96 inches (1219mm x 2438mm) and comes in various thicknesses ranging from 0.025 inches to 0.5 inches, with corresponding weights that vary significantly based on the thickness selected. The weight of a 4x8 titanium sheet typically ranges from approximately 35 pounds for thinner gauges to over 280 pounds for thicker specifications, making it essential to understand these variations for proper handling, transportation, and application planning. Baoji JL Clad Metals Materials Co., Ltd., as a leading manufacturer in China's titanium valley, provides comprehensive specifications and customization options for these critical industrial materials.

Standard Thickness Options and Weight Calculations

Common Thickness Ranges for Industrial Applications

The 4x8 titanium sheet market offers a diverse range of thickness options to accommodate various industrial requirements. Standard thicknesses typically range from 0.025 inches (0.635mm) to 0.5 inches (12.7mm), with intermediate options including 0.032", 0.040", 0.050", 0.063", 0.080", 0.100", 0.125", 0.160", 0.190", 0.250", 0.315", and 0.375" thicknesses. Each thickness serves specific applications where the 4x8 titanium sheet must meet particular structural or performance requirements. Thinner gauges are preferred for applications requiring flexibility and weight reduction, such as aerospace components and chemical processing equipment, while thicker specifications provide enhanced structural integrity for heavy-duty industrial applications. The selection of appropriate thickness for your 4x8 titanium sheet depends on factors including load requirements, environmental conditions, and manufacturing processes involved in the final application.

Weight Distribution Across Different Titanium Grades

The weight of a 4x8 titanium sheet varies not only by thickness but also by the specific grade of titanium used in manufacturing. Grade 2 commercially pure titanium, the most common material for general industrial applications, has a density of approximately 0.163 pounds per cubic inch, which directly impacts the final weight calculations for any 4x8 titanium sheet. For example, a 0.063-inch thick Grade 2 titanium sheet measuring 4x8 feet weighs approximately 65 pounds, while a 0.125-inch thick sheet of the same dimensions weighs around 130 pounds. Higher-strength titanium alloys, such as Ti-6Al-4V, have slightly different densities that affect the overall weight of the 4x8 titanium sheet. These weight considerations are critical for transportation logistics, installation procedures, and structural design calculations where the 4x8 titanium sheet will be integrated into larger systems or assemblies.

Precision Manufacturing and Tolerance Standards

Manufacturing precision plays a crucial role in determining the exact specifications of each 4x8 titanium sheet produced at Baoji JL Clad Metals. Our manufacturing processes adhere to stringent international standards including ASTM B265 and ASME SB265, ensuring that every 4x8 titanium sheet meets precise dimensional tolerances and weight specifications. The hot and cold rolling processes used in production allow for exceptional control over thickness uniformity, typically maintaining tolerances within ±0.005 inches for most standard thicknesses. This precision manufacturing approach ensures that customers receive 4x8 titanium sheet products with consistent physical properties and predictable performance characteristics. Quality control measures implemented throughout the production process include dimensional verification, surface finish inspection, and mechanical property testing to guarantee that each 4x8 titanium sheet meets or exceeds the specified requirements for thickness, flatness, and overall dimensional accuracy.

Material Properties and Performance Characteristics

Structural Integrity and Load-Bearing Capabilities

The structural performance of a 4x8 titanium sheet is directly related to its thickness and the specific grade of titanium used in its construction. Thicker 4x8 titanium sheet options provide superior load-bearing capabilities, with ultimate tensile strengths ranging from 35,000 PSI for commercially pure grades to over 130,000 PSI for high-strength alloys like Ti-6Al-4V. The relationship between thickness and structural performance is particularly important in applications where the 4x8 titanium sheet must withstand significant mechanical loads, pressure differentials, or dynamic loading conditions. Engineers must consider the section modulus, which increases proportionally with thickness, when selecting the appropriate 4x8 titanium sheet for structural applications. Additionally, the excellent strength-to-weight ratio of titanium makes even thicker 4x8 titanium sheet options attractive for applications where weight reduction is critical without compromising structural integrity.

Corrosion Resistance Across Varying Environments

One of the primary advantages of selecting a 4x8 titanium sheet for industrial applications is its exceptional corrosion resistance across a wide range of environmental conditions. The natural oxide layer that forms on the surface of any 4x8 titanium sheet provides outstanding protection against most acids, bases, and chloride-containing environments that would rapidly degrade other metallic materials. This corrosion resistance is maintained regardless of the thickness of the 4x8 titanium sheet, making it an ideal choice for chemical processing equipment, marine applications, and power generation facilities. The passive oxide layer is self-healing, meaning that if the surface of the 4x8 titanium sheet is scratched or damaged during installation or service, the protective layer will reform naturally when exposed to oxygen. This characteristic ensures long-term performance and reduced maintenance requirements for systems incorporating 4x8 titanium sheet components, ultimately providing significant cost savings over the operational lifetime of the equipment.

Thermal Properties and Temperature Performance

The thermal characteristics of a 4x8 titanium sheet make it suitable for applications involving elevated temperatures and thermal cycling conditions. Titanium maintains its mechanical properties at temperatures up to 600°F (315°C) for commercially pure grades and even higher for specialized alloys, making the 4x8 titanium sheet an excellent choice for high-temperature industrial processes. The thermal expansion coefficient of titanium is relatively low compared to other metals, which helps minimize thermal stress in applications where the 4x8 titanium sheet experiences temperature variations during normal operation. Heat transfer characteristics are also favorable, with titanium providing adequate thermal conductivity for most industrial heat exchange applications while maintaining the structural integrity of the 4x8 titanium sheet under thermal cycling conditions. These thermal properties, combined with the inherent corrosion resistance, make the 4x8 titanium sheet particularly valuable in applications such as heat exchangers, reactor vessels, and thermal processing equipment where both temperature resistance and chemical compatibility are required.

Manufacturing Standards and Quality Assurance

International Certification and Compliance Standards

Baoji JL Clad Metals maintains the highest manufacturing standards for every 4x8 titanium sheet produced in our facilities, adhering to multiple international certification requirements that ensure consistent quality and performance. Our ISO 9001:2000 certification demonstrates our commitment to quality management systems throughout the entire production process of each 4x8 titanium sheet. Additionally, our successful achievement of PED (Pressure Equipment Directive) and ABS (American Bureau of Shipping) certifications in 2024 validates our capability to produce 4x8 titanium sheet products suitable for pressure vessel applications and marine environments. These certifications require rigorous documentation, process control, and quality verification procedures that guarantee every 4x8 titanium sheet meets the stringent requirements for critical industrial applications. The compliance with ASTM, ASME, and JIS standards ensures that our 4x8 titanium sheet products can be seamlessly integrated into international projects and meet the expectations of engineers and procurement specialists worldwide.

Advanced Testing and Quality Control Procedures

Each 4x8 titanium sheet undergoes comprehensive testing and inspection procedures designed to verify material properties, dimensional accuracy, and surface quality before shipment to customers. Our quality control laboratory performs chemical analysis to confirm the titanium grade and verify that alloying elements are within specified ranges for every batch of 4x8 titanium sheet material. Mechanical property testing includes tensile strength, yield strength, and elongation measurements that ensure each 4x8 titanium sheet meets or exceeds the minimum requirements for its intended application. Surface finish inspection and dimensional verification are performed using precision measuring equipment to confirm that thickness, flatness, and overall dimensions are within specified tolerances for each 4x8 titanium sheet. Non-destructive testing methods, including ultrasonic inspection when required, help identify any internal discontinuities that could affect the performance of the 4x8 titanium sheet in service. This comprehensive quality assurance program provides customers with confidence in the reliability and consistency of every 4x8 titanium sheet supplied by Baoji JL Clad Metals.

Customization Capabilities and Engineering Support

Our manufacturing capabilities extend beyond standard 4x8 titanium sheet dimensions to include custom sizing, thickness variations, and specialized surface treatments tailored to specific customer requirements. The flexibility of our production processes allows for the manufacture of 4x8 titanium sheet products with unique specifications that may not be available from other suppliers. Engineering support services are provided to help customers select the optimal 4x8 titanium sheet specifications for their particular applications, including thickness recommendations, grade selection, and compatibility assessments with existing systems. Custom fabrication services can transform standard 4x8 titanium sheet materials into complex shapes, assemblies, or sub-components ready for installation in customer facilities. Our technical team works closely with customers throughout the design and manufacturing process to ensure that the final 4x8 titanium sheet product meets all performance requirements while optimizing cost-effectiveness and delivery schedules. This collaborative approach has enabled successful completion of numerous challenging projects where standard 4x8 titanium sheet products required modification or enhancement to meet specific application demands.

Conclusion

Understanding the typical thicknesses and weights of 4x8 titanium sheets is fundamental for successful project planning and material selection. With thickness options ranging from 0.025 to 0.5 inches and corresponding weights from 35 to over 280 pounds, proper specification selection ensures optimal performance and cost-effectiveness. Baoji JL Clad Metals' commitment to quality manufacturing, international certifications, and customization capabilities makes us the ideal partner for your titanium sheet requirements.

Ready to discuss your specific 4x8 titanium sheet needs? Our team of experts is standing by to provide personalized recommendations and competitive quotations tailored to your project requirements. With over 40 years of industry experience, ISO certification, and global shipping capabilities, we deliver precision-engineered solutions that exceed expectations. Contact us today to discover how our premium 4x8 titanium sheets can enhance your next project's success. Reach out to our sales team at sales@cladmet.com for immediate assistance and expert guidance on selecting the perfect titanium sheet specifications for your application.
