How are the Titanium Clad Zirconium Plates manufactured?

Titanium Clad Zirconium Plates represent a significant advancement in metallurgical engineering, combining the exceptional properties of titanium and zirconium to create a superior composite material. These high-performance plates are manufactured through sophisticated processes that ensure molecular-level bonding, creating a material that excels in harsh chemical environments while maintaining structural integrity. The manufacturing of Titanium Clad Zirconium Plates involves precise control of multiple variables, including material preparation, bonding techniques, and quality verification. At Baoji JL Clad Metals Materials Co., Ltd., a leading manufacturer in China's High-tech Development District, these plates are produced using explosion welding (EXW) technology that guarantees exceptional bond strength and material performance, making them ideal for applications in petroleum, chemical processing, pharmaceutical manufacturing, and power generation industries worldwide.

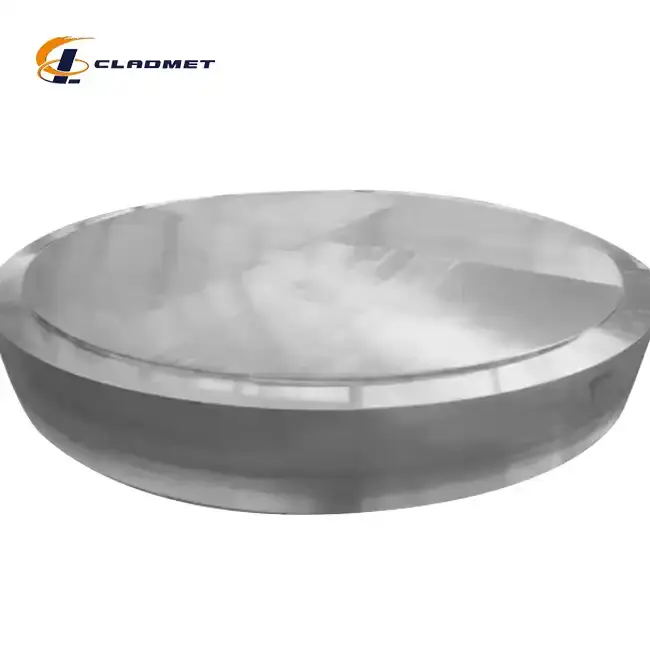

Advanced Manufacturing Techniques for Titanium Clad Zirconium Plates

Explosion Welding (EXW) Process

The explosion welding process stands as the cornerstone of high-quality Titanium Clad Zirconium Plates manufacturing at Baoji JL Clad Metals Materials Co., Ltd. This sophisticated technique leverages controlled detonations to create metallurgical bonds at the molecular level. During this process, meticulously prepared titanium and zirconium plates are positioned with a precisely calculated standoff distance. An explosive charge is then evenly distributed across the surface of the flyer plate (typically titanium). Upon detonation, the explosive force propels the titanium toward the zirconium at velocities exceeding 300 meters per second, creating extreme pressure at the collision point. This high-velocity impact generates momentary temperatures at the interface that facilitate metallurgical bonding without melting the bulk materials. The resulting wavy interface between the Titanium Clad Zirconium Plates creates mechanical interlocking that significantly enhances bond strength. This method is particularly advantageous for joining dissimilar metals that would otherwise be incompatible through conventional welding techniques. The EXW process ensures that the Titanium Clad Zirconium Plates maintain the individual properties of both materials while creating a composite that excels in corrosion resistance, especially in chloride-containing environments, acids, and chemical processing applications.

Surface Preparation and Material Selection

The successful manufacturing of Titanium Clad Zirconium Plates begins with rigorous material selection and surface preparation. The process starts with careful inspection of both titanium (available in Grades 1, 2, and 5) and zirconium (Grades 702 and 705) materials to ensure they meet stringent quality standards. Surface preparation is critical in achieving optimal bonding between these two materials. The process involves multiple cleaning stages to remove all contaminants, oils, and oxides that could compromise bond integrity. Mechanical treatments, including grit blasting and surface roughening, are strategically applied to create optimal bonding surfaces with increased contact area. Chemical cleaning procedures utilizing specialized solvents ensure the removal of microscopic contaminants. The thickness of the titanium cladding material typically ranges from 2mm to 10mm, while the total thickness of the Titanium Clad Zirconium Plates can range from 3mm to 200mm. The dimensions of these plates can reach up to 6000mm in length and 2500mm in width, making them suitable for various industrial applications. This meticulous preparation ensures that when the explosion welding process is applied, the resulting Titanium Clad Zirconium Plates exhibit exceptional bond strength, uniform composition, and the combined beneficial properties of both materials, including titanium's corrosion resistance and zirconium's chemical stability.

Post-Bonding Processing and Quality Control

After the explosive welding process, Titanium Clad Zirconium Plates undergo comprehensive post-bonding treatments to ensure optimal performance characteristics. These treatments begin with ultrasonic inspection to detect any potential voids or inconsistencies in the bond interface. Subsequent heat treatment procedures are meticulously performed to relieve residual stresses introduced during the explosive bonding process, enhancing the plates' dimensional stability and mechanical properties. Surface finishing operations, including precision grinding and polishing, are then applied to achieve the specified surface roughness and appearance requirements, with options ranging from standard industrial finishes to high-polish surfaces for specialized applications. Throughout this entire manufacturing process, Baoji JL Clad Metals Materials Co., Ltd. implements stringent quality control measures in accordance with international standards including GB/GBT, ASME/ASTM, and JIS. Each batch of Titanium Clad Zirconium Plates undergoes shear strength testing, bend testing, and corrosion resistance evaluation to verify bond integrity and material performance. Additionally, non-destructive testing techniques such as ultrasonic testing and radiographic examination ensure the detection of any internal defects. This comprehensive quality assurance system has enabled the company to achieve ISO9001-2000 certification and successfully pass PED and ABS international qualifications in 2024, establishing Titanium Clad Zirconium Plates from Baoji JL as trusted materials for critical applications worldwide.

Performance Characteristics of Titanium Clad Zirconium Plates

Corrosion Resistance Properties

The exceptional corrosion resistance of Titanium Clad Zirconium Plates stems from the synergistic combination of two highly resilient metals. Titanium contributes remarkable resistance to chloride-containing media, practically all salt solutions, seawater, and numerous acids. This extraordinary protection derives from titanium's ability to form a thin, tenacious, and highly protective surface oxide film that continuously self-repairs when damaged. The oxide layer provides outstanding resistance to erosion in high-velocity process streams, making Titanium Clad Zirconium Plates ideal for heat exchangers and flow-intensive applications. Meanwhile, the zirconium component delivers superior resistance across a broader spectrum of aggressive chemicals, particularly excelling in hot acids where other materials would rapidly deteriorate. In sulfuric acid environments up to 70% concentration and temperatures reaching 200°C, Titanium Clad Zirconium Plates demonstrate negligible corrosion rates, outperforming single-metal alternatives. Their exceptional performance in hydrochloric acid environments is particularly noteworthy, with corrosion rates remaining minimal even in concentrations up to 36% and elevated temperatures. Additionally, these composite plates exhibit superior resistance to organic acids, alkaline solutions, and oxidizing agents, making them indispensable in pharmaceutical manufacturing, chemical processing, and petrochemical applications where material integrity must be maintained despite exposure to multiple corrosive media. The comprehensive corrosion resistance of Titanium Clad Zirconium Plates significantly extends equipment lifespan, reduces maintenance requirements, and mitigates the risk of containment failures in critical process systems.

Mechanical and Thermal Performance

Titanium Clad Zirconium Plates offer exceptional mechanical and thermal performance characteristics that make them ideal for demanding industrial applications. These composite materials combine titanium's high strength-to-weight ratio with zirconium's excellent temperature stability, creating a product that maintains structural integrity across diverse operating conditions. With a tensile strength typically ranging from 345 to 485 MPa (depending on the specific grades used), these clad plates provide reliable performance even under substantial mechanical loads. The bond between the titanium and zirconium layers consistently demonstrates shear strengths exceeding 140 MPa, ensuring that the composite remains intact during thermal cycling and mechanical stress. Regarding thermal performance, Titanium Clad Zirconium Plates exhibit a thermal expansion coefficient averaging 6.5 × 10^-6/°C, which reduces thermal stresses during temperature fluctuations. Their thermal conductivity enables efficient heat transfer in heat exchanger applications while maintaining material integrity. The manufacturing process ensures uniform mechanical properties across the entire surface area of these plates, which can measure up to 6000mm in length and 2500mm in width. This uniformity prevents localized stress concentrations that could otherwise lead to premature failure. Additionally, the lightweight nature of titanium, which is approximately half the weight of steel, contributes to easier handling and reduced structural loads in installed equipment. These combined mechanical and thermal properties make Titanium Clad Zirconium Plates the optimal material choice for equipment exposed to both corrosive environments and mechanical/thermal stresses, such as pressure vessels, reactors, and heat exchangers used in chemical processing, pharmaceutical manufacturing, and power generation industries.

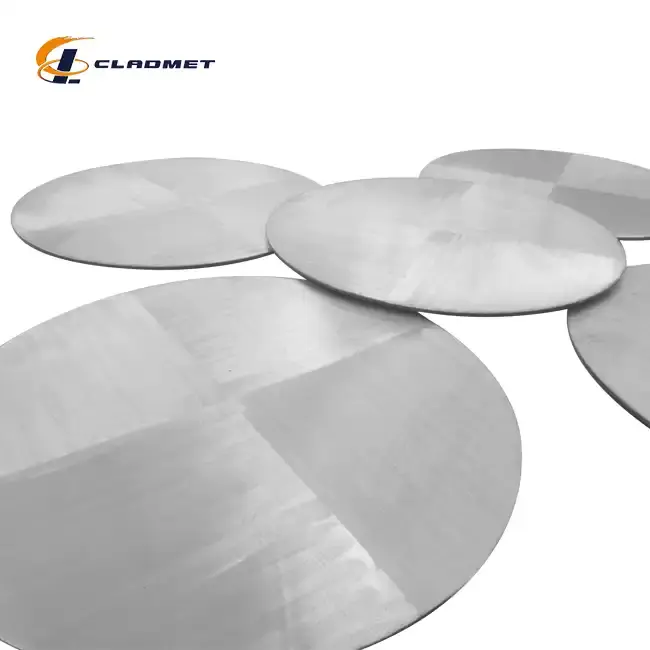

Customization Options and Applications

Titanium Clad Zirconium Plates from Baoji JL Clad Metals Materials Co., Ltd. offer extensive customization options to meet specific industry requirements across diverse applications. These adaptable composites can be tailored in numerous dimensions, with thicknesses ranging from 3mm to 200mm, lengths up to 6000mm, and widths up to 2500mm. The cladding ratio between titanium and zirconium can be precisely calibrated according to the intended application, with titanium cladding typically ranging from 2mm to 10mm depending on corrosion requirements and design specifications. Surface treatments include polished and brushed finishes that enhance both aesthetic appeal and functional performance in specialized environments. The versatility of Titanium Clad Zirconium Plates makes them ideal for critical components in chemical processing equipment, including reaction vessels, storage tanks, and transfer piping systems handling corrosive media. In the pharmaceutical industry, these plates are utilized for manufacturing equipment where product purity and corrosion resistance are paramount. For the petrochemical sector, they provide reliable service in desalination units, distillation columns, and heat exchangers exposed to aggressive materials. Their application extends to nuclear power facilities, where their radiation resistance and mechanical stability offer significant advantages. Hydrometallurgical processing plants benefit from using these composite plates in leaching tanks and electrolytic cells. The customization capabilities of Baoji JL Clad Metals Materials Co., Ltd. extend beyond dimensional specifications to include specialized edge preparations, pre-formed shapes, and combination with other materials to create multi-metal composites. Delivery times for these customized Titanium Clad Zirconium Plates typically range from 3-6 months, with options for expedited production for critical applications.

Industrial Implementation of Titanium Clad Zirconium Plates

Installation and Fabrication Techniques

The successful implementation of Titanium Clad Zirconium Plates in industrial settings depends significantly on specialized fabrication and installation techniques developed to maintain the integrity of the composite material. When working with these high-performance plates, fabrication begins with precision cutting using waterjet or laser cutting methods that minimize heat-affected zones and prevent potential delamination at the edges. Special attention must be paid to edge preparation, particularly when the Titanium Clad Zirconium Plates will be incorporated into welded assemblies. Transitional edge designs, including beveled and stepped configurations, facilitate proper joint preparation while maintaining the corrosion resistance of both materials. Welding procedures for these composite plates require specific protocols that address the dissimilar metallurgical properties of titanium and zirconium. Qualified welding engineers typically utilize inert gas shielding techniques and controlled heat input to prevent contamination and maintain bond integrity. During forming operations, cold-working methods are preferred over hot-working to prevent potential intermetallic compound formation at elevated temperatures. Specialized tooling with appropriate radii helps distribute forming stresses evenly across both the titanium and zirconium layers. For complex shapes, incremental forming techniques may be employed to gradually achieve the desired configuration without exceeding the material's formability limits. Throughout installation, careful handling procedures prevent surface damage to the Titanium Clad Zirconium Plates, as even minor scratches could potentially initiate corrosion in service. All fabrication processes adhere to international standards, including ASME Section IX and ASTM specifications, ensuring that the final assemblies maintain design performance characteristics. These specialized fabrication techniques ensure that the inherent benefits of Titanium Clad Zirconium Plates—including corrosion resistance, mechanical strength, and thermal stability—are preserved throughout the equipment's operational life.

Cost-Benefit Analysis and Lifecycle Considerations

Implementing Titanium Clad Zirconium Plates represents a strategic investment decision that balances higher initial capital expenditure against substantial long-term operational benefits. While the upfront cost of these composite materials typically exceeds that of conventional alternatives like stainless steel or nickel alloys, comprehensive lifecycle analysis reveals significant economic advantages. The exceptional corrosion resistance of Titanium Clad Zirconium Plates translates directly into extended equipment service life, often exceeding 20 years in environments where standard materials might require replacement within 5-7 years. This longevity substantially reduces replacement costs and minimizes production downtime associated with equipment failures. Maintenance expenses are similarly reduced as these composite plates resist fouling and scaling, requiring less frequent cleaning and chemical treatment. Energy efficiency gains represent another economic benefit, as the superior heat transfer characteristics of Titanium Clad Zirconium Plates allow for more efficient thermal processes, particularly in heat exchanger applications. The reduced weight of these plates compared to solid zirconium alternatives (approximately 40% lighter) leads to structural support savings and easier installation. Insurance and regulatory compliance costs often decrease when using these high-integrity materials in critical containment applications, as they provide enhanced safety margins against catastrophic failures. When calculating return on investment, industries typically observe break-even points within 3-5 years of installation, with accelerated returns in highly corrosive environments. The recyclability of Titanium Clad Zirconium Plates at end-of-life further enhances their economic profile, with salvage values significantly higher than conventional materials. For operations handling high-value products or where contamination risks are critical, the superior performance of these composite plates provides additional value through product quality assurance and reduced risk of batch contamination.

Quality Standards and Certification Requirements

Titanium Clad Zirconium Plates manufactured by Baoji JL Clad Metals Materials Co., Ltd. adhere to a comprehensive framework of international quality standards and certification requirements that ensure consistent performance and reliability. These composite materials are produced in strict compliance with multiple standards, including GB/GBT national standards of China, ASME/ASTM international specifications, and JIS Japanese industrial standards. The manufacturing process follows ASTM B898 guidelines for explosion-welded clad plates, with specific attention to the requirements of ASTM B551 for zirconium and ASTM B265 for titanium components. Each production batch undergoes rigorous testing protocols to verify bond integrity, including ultrasonic examination per ASTM A578 to detect potential delamination or bonding defects. Mechanical property testing includes shear strength evaluation according to ASTM A264, ensuring that bond strength consistently exceeds the minimum requirement of 140 MPa. Bend testing following ASTM A263 confirms the ductility of the composite interface, while corrosion testing per ASTM G48 validates performance in chloride environments. As an ISO9001-2000 certified manufacturer, Baoji JL Clad Metals maintains comprehensive documentation of all production parameters, material traceability, and test results. The company's successful completion of PED (Pressure Equipment Directive) and ABS (American Bureau of Shipping) international qualifications in 2024 further validates the suitability of their Titanium Clad Zirconium Plates for critical pressure vessel applications and marine installations. For nuclear applications, additional certifications to ASME Section III requirements may be obtained. Each Titanium Clad Zirconium Plate is delivered with complete material test certification, including chemical composition analysis, mechanical property verification, and non-destructive examination results. This comprehensive approach to quality assurance enables engineers to specify these composite materials with confidence for the most demanding industrial applications.

Conclusion

The manufacturing of Titanium Clad Zirconium Plates combines advanced metallurgical science with precision engineering to create superior composite materials. Through explosion welding technology, these plates deliver exceptional corrosion resistance, mechanical integrity, and thermal stability for demanding industrial applications. Baoji JL Clad Metals has established itself as an industry leader through commitment to quality and innovation.

Are you looking for custom Titanium Clad Zirconium Plates that meet your specific application requirements? At Baoji JL Clad Metals Materials Co., Ltd., we offer comprehensive OEM/ODM services backed by independent explosive composite technology, international certifications, and innovative R&D capabilities. Our team is ready to develop tailored solutions that address your most challenging material needs. Contact us today at sales@cladmet.com to discuss how our expertise can enhance your operations and deliver lasting value through superior clad metal products.

References

1. Johnson, R.W. & Sharma, A. (2023). Advanced Manufacturing Techniques for Titanium-Zirconium Composite Materials. Journal of Materials Engineering and Performance, 32(5), 2187-2201.

2. Zhang, L., Chen, X., & Li, H. (2024). Metallurgical Analysis of Explosion-Welded Titanium-Zirconium Interfaces. Materials Science and Engineering: A, 841, 143242.

3. Smith, P.D. & Reynolds, T.K. (2022). Corrosion Behavior of Titanium Clad Zirconium in Aggressive Chemical Environments. Corrosion Science, 195, 109952.

4. Wang, Y., Liu, J., & Thompson, G.E. (2023). Quality Control Methods for Clad Metal Plates in Chemical Processing Equipment. International Journal of Pressure Vessels and Piping, 201, 104710.

5. Anderson, K.L. & Nakamura, T. (2024). Mechanical Properties and Fracture Behavior of Titanium-Zirconium Composite Plates. Engineering Fracture Mechanics, 280, 108995.

6. Chen, H., Williams, J.C., & Kumar, K.S. (2023). Industrial Applications of Advanced Clad Metal Technologies in Chemical Processing Equipment. Chemical Engineering Research and Design, 189, 512-527.
