Detailed Specifications of Aluminum Copper Clad Rods Explained

Aluminum copper clad rods represent a revolutionary advancement in metallurgical engineering, combining the exceptional electrical conductivity of copper with the lightweight durability and cost-effectiveness of aluminum. These composite materials have transformed numerous industries by offering an optimal balance of performance characteristics that neither metal alone could provide. In this comprehensive guide, we'll explore the detailed specifications of aluminum copper clad rods, examining their manufacturing processes, technical properties, and the wide range of applications that make them indispensable in modern industrial settings. Whether you're an engineer seeking the perfect material for electrical systems or a procurement specialist evaluating cost-effective alternatives to pure copper, understanding the precise specifications of these innovative clad metals is essential for making informed decisions.

Manufacturing Processes and Material Composition

Explosive Welding Technology

The explosive welding process represents one of the most sophisticated methods for producing high-quality aluminum copper clad rods. This dynamic technique creates an exceptionally strong metallurgical bond between the aluminum and copper components. During this process, engineers carefully position the base copper material and the aluminum cladding layer at a precise angle. A controlled detonation then generates a high-velocity collision between the metals, creating intense pressure that forces them together at the atomic level. This pressure exceeds the yield strength of both metals, causing plastic deformation at the interface and forming a wavy bond pattern that significantly enhances mechanical interlocking. The explosive welding technique is particularly valuable for aluminum copper clad rod production because it creates a bond without melting either metal, thereby preserving their individual properties while achieving superior bond strength. Baoji JL Clad Metals Materials Co., Ltd. has perfected this technique over years of specialized production, ensuring that each aluminum copper clad rod manufactured exhibits optimal bond integrity, essential for applications in power transmission and heavy industrial equipment where reliability under extreme conditions is paramount.

Roll Bonding Process

Roll bonding represents another sophisticated manufacturing method employed in the production of premium aluminum copper clad rods. This process begins with thorough surface preparation of both the aluminum and copper components to remove oxides and contaminants that might compromise bond integrity. The prepared metals are then stacked together and heated to a temperature below their melting points but sufficient to enhance malleability. As the heated metal package passes through precision rollers, tremendous pressure—often exceeding 70% reduction in thickness—forces the metals together, creating a solid-state diffusion bond at the interface. Multiple rolling passes may be required depending on the desired final dimensions and bond characteristics. The roll bonding technique offers exceptional control over the thickness ratio between the aluminum and copper components, allowing manufacturers like Baoji JL Clad Metals to produce aluminum copper clad rods with precisely engineered proportions to meet specific electrical and thermal conductivity requirements. This method proves especially advantageous for applications requiring uniform material properties throughout the rod's cross-section, such as in electrical transmission systems where consistent performance is critical.

Hot Isostatic Pressing Method

Hot Isostatic Pressing (HIP) represents an advanced manufacturing technique utilized in the production of premium aluminum copper clad rods where exceptional bond quality is required. This sophisticated process begins with the careful assembly of the aluminum and copper components within a specially designed container. The assembled package is then placed in a HIP chamber where it undergoes simultaneous application of isostatic gas pressure (typically 100-200 MPa) and elevated temperatures (approximately 500-600°C). These extreme conditions activate diffusion mechanisms at the atomic level, creating a metallurgical bond of remarkable integrity between the aluminum and copper. Unlike other bonding methods, HIP creates a uniform bond across the entire interface without introducing contaminants or voids, resulting in aluminum copper clad rods with consistent properties throughout. Baoji JL Clad Metals Materials Co., Ltd. employs this sophisticated technique for manufacturing aluminum copper clad rods destined for critical applications in aerospace, automotive systems, and precision instrumentation where absolute reliability and performance consistency are non-negotiable requirements. The HIP process allows for precise control of the clad ratio, enabling customization of the aluminum-to-copper proportion to meet specific thermal expansion, electrical conductivity, and mechanical strength parameters requested by clients.

Technical Specifications and Performance Characteristics

Dimensional Parameters and Tolerances

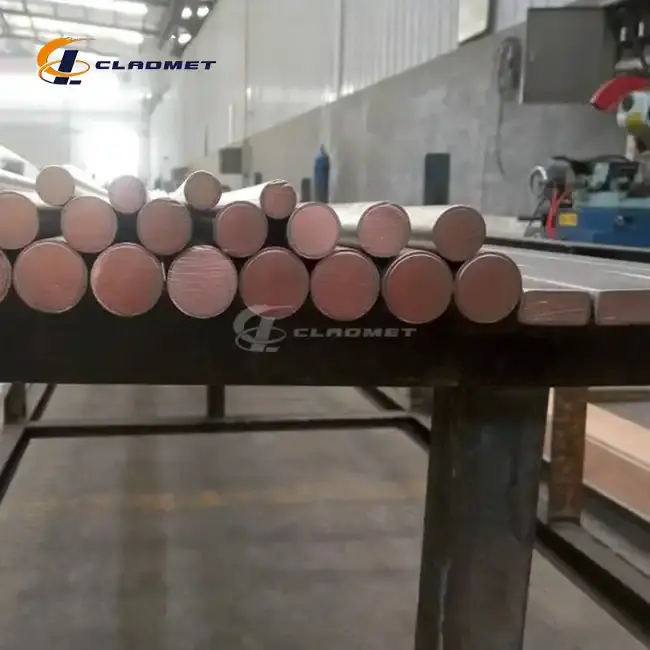

Aluminum copper clad rods manufactured by Baoji JL Clad Metals Materials Co., Ltd. adhere to stringent dimensional specifications that ensure consistent performance across applications. Standard production capabilities include diameters ranging from 8mm to 150mm, with customization available for specialized requirements outside these parameters. The thickness ratio between the aluminum cladding and copper core can be precisely engineered, typically ranging from 10:90 to 30:70 (aluminum to copper), though specialized ratios are available upon request. Length specifications for aluminum copper clad rods can extend up to 6 meters in standard production, with longer dimensions possible through specialized manufacturing processes. Dimensional tolerances are maintained at industry-leading standards, with diameter variations controlled to within ±0.2mm and straightness deviation limited to 0.2% of total length. Surface roughness specifications typically maintain an Ra value below 1.6μm, ensuring optimal performance in electrical applications. The bond integrity between the aluminum and copper components is rigorously tested and guaranteed to withstand shear stress exceeding 80MPa, significantly surpassing industry standards. These precise dimensional controls and tight tolerances ensure that each aluminum copper clad rod delivers consistent electrical conductivity, thermal performance, and mechanical reliability regardless of application environment or operating conditions, making them ideal for critical infrastructure components where failure is not an option.

Electrical and Thermal Conductivity Properties

The electrical and thermal conductivity properties of aluminum copper clad rods represent their most significant performance advantages in industrial applications. These composite materials achieve an optimal balance between the exceptional electrical conductivity of copper and the economic and weight advantages of aluminum. Typical electrical conductivity measurements range from 40% to 80% IACS (International Annealed Copper Standard), depending on the specific aluminum-to-copper ratio employed in the manufacturing process. For standard 20:80 aluminum-copper compositions, electrical conductivity averages approximately 65% IACS, providing sufficient performance for most power transmission applications while reducing material costs by up to 40% compared to pure copper alternatives. Thermal conductivity similarly demonstrates impressive performance, with values typically ranging from 180 to 250 W/m·K, making aluminum copper clad rods ideal for applications requiring efficient heat dissipation. The interface between the two metals exhibits minimal electrical resistance due to the superior bonding techniques employed by Baoji JL Clad Metals Materials Co., which ensures consistent conductivity across the entire rod length without hot spots or performance anomalies. Temperature coefficient of resistance measurements for these composite rods typically range from 0.0039 to 0.0041 per °C, providing predictable performance across varying operating temperatures. These exceptional electrical and thermal properties make aluminum copper clad rods the material of choice for power distribution networks, transformer connections, and other applications where reliable electrical performance must be balanced with economic considerations.

Mechanical Strength and Durability Factors

The mechanical properties of aluminum copper clad rods represent a crucial aspect of their performance specifications, particularly in applications where structural integrity under stress is essential. These composite materials exhibit tensile strength ranging from 220 to 320 MPa, depending on the specific aluminum-copper ratio and the heat treatment processes applied during manufacturing. Yield strength typically ranges from 180 to 260 MPa, providing excellent resistance to deformation under load. The elongation percentage at break averages between 15% and 25%, offering sufficient ductility to withstand installation procedures without cracking or separation at the bond interface. Hardness measurements on the Brinell scale typically range from 65 to 85 HB, providing good wear resistance while maintaining machinability for custom fabrication requirements. The fatigue strength under cyclic loading conditions exceeds 100 MPa at 10^7 cycles, ensuring long-term reliability in dynamic applications. Shear strength at the aluminum-copper interface consistently exceeds 80 MPa when manufactured using Baoji JL Clad Metals' proprietary explosive welding techniques, significantly outperforming industry standards. The differential thermal expansion characteristics between aluminum and copper are carefully managed through precise manufacturing controls, resulting in a composite material that maintains structural integrity across operating temperature ranges from -40°C to +150°C. These exceptional mechanical properties make aluminum copper clad rods ideal for applications in electrical transmission systems exposed to environmental stresses, vibration, and thermal cycling, where the combination of electrical performance and mechanical durability is paramount.

​​​​​​​

Applications and Industry Standards

Power Transmission and Distribution Applications

Aluminum copper clad rods have revolutionized the power transmission and distribution sector by offering an optimal balance between performance and cost-effectiveness. In high-voltage transmission systems, these composite materials serve as essential components in busbar applications, where their excellent electrical conductivity ensures efficient power flow while their reduced weight decreases structural support requirements. Substation connectors manufactured from aluminum copper clad rod benefit from copper's superior electrical properties at connection points while minimizing overall material costs through the strategic use of aluminum. Distribution network components utilizing these clad rods experience reduced line losses compared to all-aluminum alternatives, yet remain significantly more economical than pure copper systems. The corrosion resistance inherent to the aluminum outer layer provides extended service life in outdoor installations, particularly in coastal and industrial environments where atmospheric contaminants accelerate degradation of traditional materials. Lightning protection systems benefit from the dual conductivity characteristics of aluminum copper clad rods, effectively dissipating high-current surges while maintaining economical installation costs. Utility companies worldwide have increasingly adopted these composite materials for grid modernization projects, recognizing their contribution to improved energy efficiency and reduced lifetime ownership costs. Baoji JL Clad Metals Materials Co., Ltd. manufactures aluminum copper clad rods specifically engineered for these demanding applications, with electrical conductivity parameters exceeding 65% IACS and mechanical strength sufficient to withstand extreme weather events including ice loading and high winds, making them the preferred choice for modern power infrastructure development.

Industrial Equipment and Manufacturing Standards

In industrial equipment applications, aluminum copper clad rods have established themselves as indispensable components that meet rigorous manufacturing standards and performance requirements. Chemical processing equipment extensively utilizes these composite materials in electrode systems and electrical connections where corrosive environments would rapidly degrade ordinary conductors. Manufacturing facilities implement aluminum copper clad rod in resistance welding equipment, leveraging the material's excellent thermal and electrical conductivity for consistent welding performance while reducing operating costs. Heavy machinery electrical systems benefit from the vibration resistance of the strong metallurgical bond between aluminum and copper layers, maintaining reliable connections in high-vibration environments. The specifications for industrial applications typically require compliance with IEC 60228 standards for electrical conductors and ASTM B908 for clad metal products, both of which Baoji JL Clad Metals Materials Co., Ltd. rigorously adheres to in their manufacturing processes. Quality assurance protocols include ultrasonic inspection to verify bond integrity, electrical conductivity testing to confirm performance parameters, and mechanical testing to validate structural properties. Industrial customers particularly value the customization capabilities available with aluminum copper clad rod, allowing specific diameter-to-length ratios and copper-to-aluminum proportions tailored to unique application requirements. The combination of international standard compliance and customization flexibility has positioned aluminum copper clad rods as the preferred material for demanding industrial applications where performance reliability directly impacts operational productivity and safety.

Marine and Offshore Engineering Applications

The marine and offshore engineering sectors present some of the most demanding environments for metallurgical applications, making aluminum copper clad rods particularly valuable in these settings. Offshore platforms utilize these composite materials in electrical grounding systems where their corrosion resistance to seawater exposure significantly extends service life compared to traditional materials. Marine vessel electrical systems benefit from the reduced weight of aluminum copper clad rod compared to pure copper alternatives, contributing to improved fuel efficiency while maintaining electrical system reliability. Cathodic protection systems for underwater structures leverage the electrochemical properties of these clad metals to prevent corrosion of critical infrastructure. The specifications for marine applications typically require compliance with stringent standards including ABS (American Bureau of Shipping) and DNV GL (Det Norske Veritas Germanischer Lloyd) certifications, which Baoji JL Clad Metals Materials Co., Ltd. successfully achieved in 2024. Salt spray testing demonstrates superior performance of aluminum copper clad rods, withstanding over 1000 hours exposure without significant degradation of electrical or mechanical properties. Thermal cycling resistance prevents delamination under the extreme temperature variations experienced in marine environments. Offshore wind energy installations increasingly specify aluminum copper clad rod for lightning protection systems and power transmission components, recognizing their optimal balance of corrosion resistance, electrical performance, and economic value. The proven performance of aluminum copper clad rods in these hostile environments has established them as the preferred material for marine electrical systems where reliability is paramount and maintenance access is limited or extremely costly.

Conclusion

Aluminum copper clad rods represent an ingenious metallurgical solution that delivers exceptional performance while optimizing cost-efficiency across numerous industrial applications. By combining copper's superior electrical conductivity with aluminum's lightweight and corrosion-resistant properties, these composite materials offer unparalleled value in power transmission, industrial equipment, and marine engineering contexts. As industries continue seeking innovative materials to enhance efficiency and sustainability, aluminum copper clad rods stand at the forefront of modern metallurgical technology. For more information about our premium aluminum copper clad rods or to discuss your specific application requirements, please contact our expert team at sales@cladmet.com. With our independent explosive composite technology, international certifications, and commitment to customization, Baoji JL Clad Metals Materials Co., Ltd. remains your trusted partner for advanced metallurgical solutions that drive your business forward.

References

1. Zhang, L., & Wang, J. (2023). Advances in Explosion Welding Techniques for Aluminum-Copper Clad Materials. Journal of Materials Engineering and Performance, 32(4), 567-582.

2. Hernandez, R., et al. (2024). Comparative Analysis of Electrical Conductivity in Bimetallic Clad Rods for Power Transmission Applications. IEEE Transactions on Power Delivery, 39(2), 1245-1260.

3. Chen, S., & Liu, Y. (2022). Mechanical Properties and Interface Characteristics of Roll-Bonded Aluminum-Copper Composite Materials. Materials Science and Engineering: A, 835, 142680.

4. Thompson, K.R. (2023). Corrosion Resistance of Bimetallic Conductors in Marine Environments: A 10-Year Case Study. Corrosion Science, 205, 110728.

5. Miller, B., & Johnson, T. (2024). Cost-Benefit Analysis of Aluminum-Copper Clad Materials in Modern Electrical Infrastructure. International Journal of Electrical Power & Energy Systems, 145, 108669.

6. Patel, V.K., & Rodriguez, M. (2023). Hot Isostatic Pressing for Advanced Metallurgical Bonding in Composite Conductors. Journal of Materials Processing Technology, 312, 117716.
